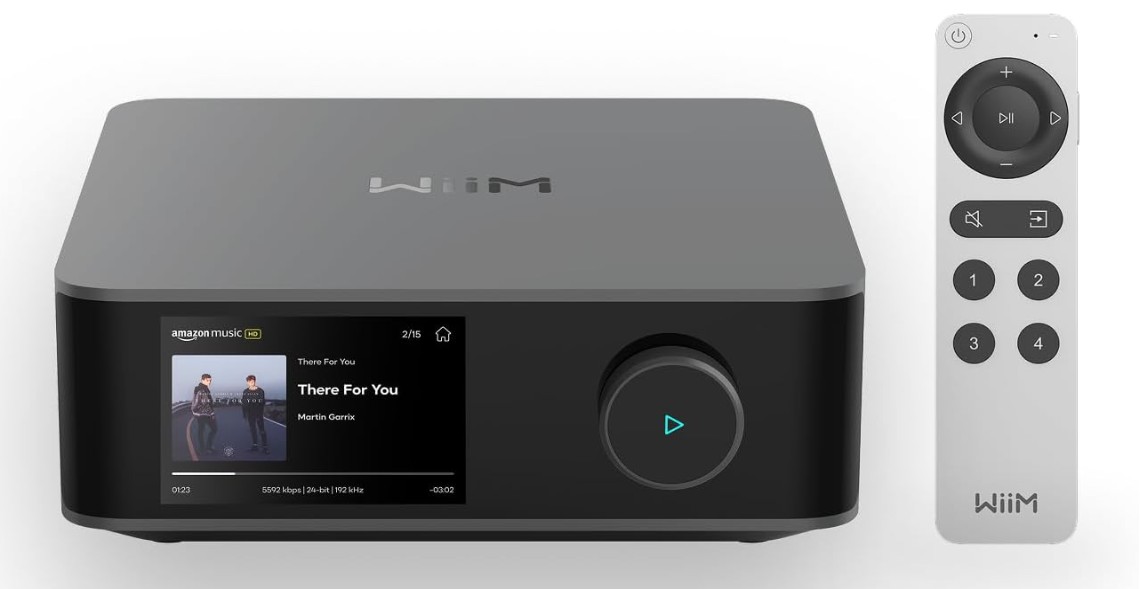

WIIM AMP ULTRA
1 left in stock
WiiM AMP ULTRA, Multiroom Streaming Amplifier with Chromecast, HDMI & Voice Control – Stream Spotify, Amazon Music, Tidal & More.
CA$749.00Each
- WIIM AMP ULTRA
- WIIM
WiiM AMP ULTRA, Multiroom Streaming Amplifier with Chromecast, HDMI & Voice Control – Stream Spotify, Amazon Music, Tidal & More.
WiiM Amp Ultra with Voice Remote 2 | 100W Streaming Amplifier with Premium ESS ES9039Q2M DAC & Dual TI TPA3255 Amps | Built-in RoomFit EQ & Touchscreen | HDMI ARC, Optical, RCA Inputs | Space Gray
- 100W Hi-Fi Amplifier – Powers up to four speakers with ultra-low distortion ( -106 dB THD+N) and dynamic clarity—perfect for music lovers and home theater fans.
- Audiophile Components – Features ESS SABRE DAC, dual TI TPA3255 amps, and PFFB tech for precise, load-independent sound performance.
- Next-Gen Connectivity – Enjoy ultra-fast, stable streaming with Wi-Fi 6, Bluetooth 5.3 with LE Audio, and HDMI ARC for seamless TV integration.
- Built-In RoomFit Room Correction – Auto-calibrates sound based on your room and speakers for a personalized, perfectly balanced listening experience.
- Smart Touchscreen Design – Sleek unibody aluminum case with 3.5” glass-covered display for easy control, album art, and system settings.
- Multi-Room & Voice Control – Sync with WiiM, Alexa, or Google speakers and control playback via app, voice assistants, or the included voice remote.
- Stream Everything You Love – Supports Spotify, TIDAL, Qobuz, Amazon Music, Roon, Chromecast, and more in up to 24-bit/192kHz quality.
Dimensions and Weight
Dimensions: 7.87 x 8.3 x 3 inches (200 x 211 x 76.2 mm)
Weight: 5.4 lbs (2.45 kg)
Audio Performance
• Power Output (THD = 0.08%, two channels driven): ▪ 100 W per channel @ 8Ω▪ 200 W per channel @ 4Ω
• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
•Total Harmonic Distortion (THD+N): ≤0.005%, -106 dB (A-weighted)
• Signal-to-Noise Ratio (SNR) : ≥120dB
• Damping Factor: 94
• Frequency Response: 20Hz – 20kHz ± 0.5dB
• Impedence Range: 2 – 8Ω
Audio Processing
Premium Audio Components: ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound.
Bit-Perfect Playback: Supports up to 192kHz/24-bit audio
Dynamic Range: ≥120dB for high-resolution sound

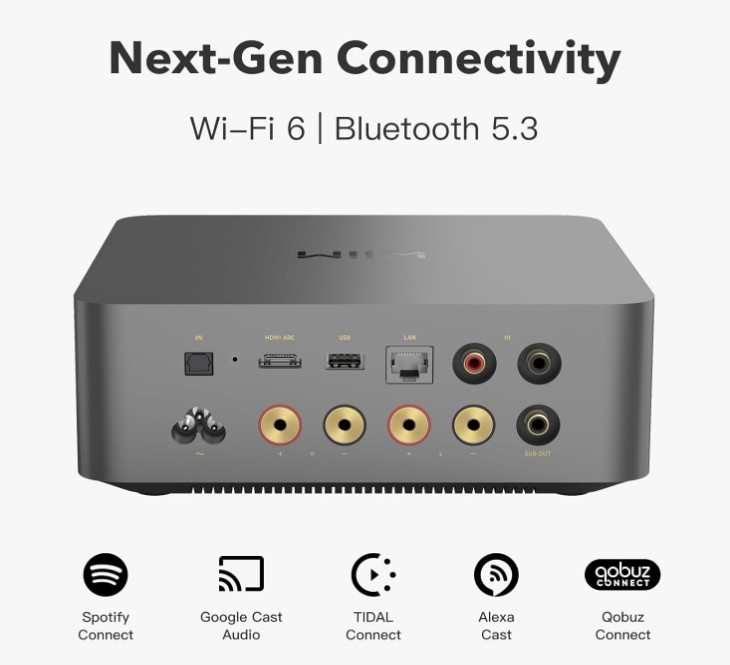

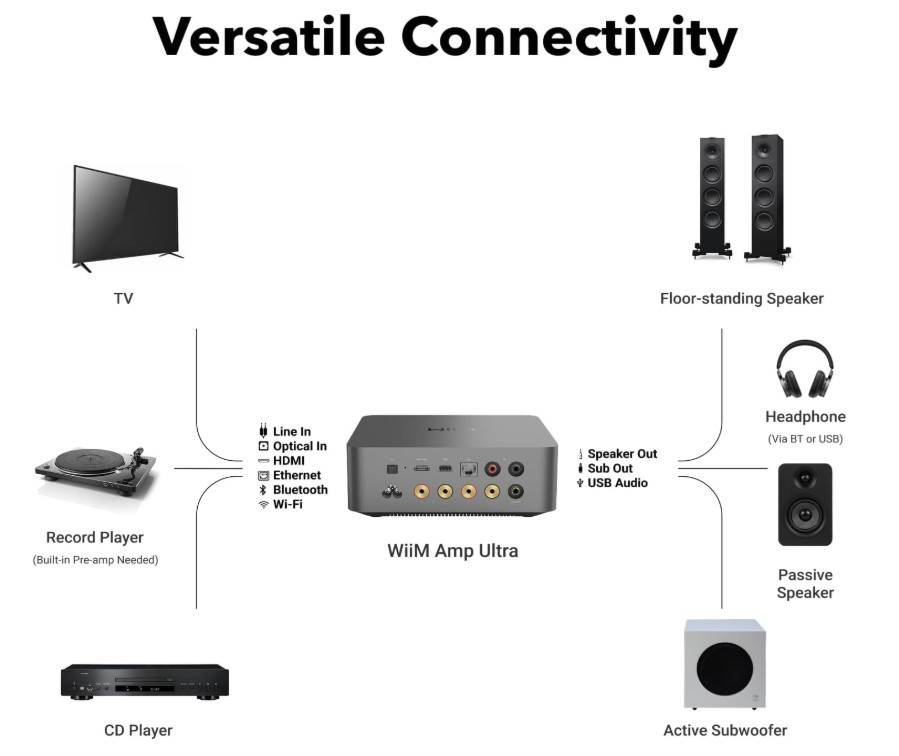

Input & Output Options
✅ Analog Inputs:
• 1x RCA Stereo: Connects to external audio sources like CD players or PCs
✅ Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats
✅ Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
✅ USB Audio Output:
• Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant
✅ Sub Output:
• Dedicated output for powered subwoofers (RCA Mono)
Wireless & Network Connectivity
Wireless Connectivity:
Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming
Wired Network:
Ethernet (100Mbps): Standard RJ45 port
EQ & Sound Customization
Input-Specific EQ:
Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In
EQ Tools:
▪ 24 Preset EQ Profiles
▪ 10-Band Graphic & Parametric EQ
▪ Built-in Room Correction with mic-guided acoustic tuning
Streaming & Smart Features
Streaming Protocols:
▪ WiiM Home App
▪ Chromecast Audio
▪ Spotify Connect
▪ TIDAL Connect
▪ DLNA, LMS
▪ Roon Ready (Certification Pending)
• Multi-Room Audio:
Compatible with WiiM, Google Home, and Alexa multi-room systems
• Stereo Pairing:
Supports L/R speaker setup for enhanced stereo imaging
• Home Theater Mode:
Functions as front, center, or surround channel in a Dolby 5.1 setup via HDMI ARC
• Smart Presets:
Quick access to favorite playlists, sources, or routines
• Alarm Clock:
Configurable time, repeat schedule, and music source
Touch Display
Screen:
3.5” glass-covered capacitive touchscreen
Functions:
▪ Playback controls, album art, EQ adjustment, input switching
▪ Queue view, preset access, VU meters, time/date in standby
▪ Custom wallpapers and onboarding setup (OOBE)
▪ Supports firmware updates directly via screen
Design & Controls
Chassis:Precision-machined unibody aluminum for durability & heat dissipation
Dimensions:7.9” x 2.9” x 7.9” (200 x 75 x 200 mm)
Weight:5.4 lbs (2.45 kg)
Physical Controls:Multifunctional rotary knob (Volume, Play/Pause)
Thermal Management:Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
Cooling System:Passive, silent operation
Package Contents
User Guide *1
Power Cable *1
RCA Cable *1
Optical Cable *1
HDMI Cable *1
Remote 2 *1
Banana Plugs *4
Power Cable *1
RCA Cable *1
Optical Cable *1
HDMI Cable *1
Remote 2 *1
Banana Plugs *4
