WF152BD03
4 left in stock

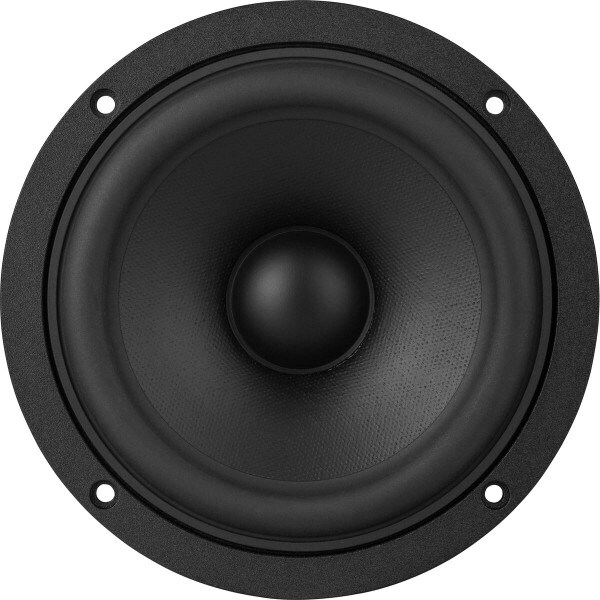

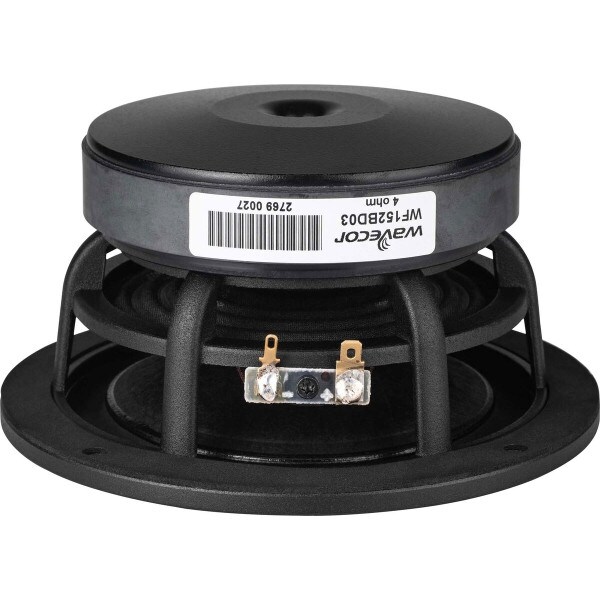

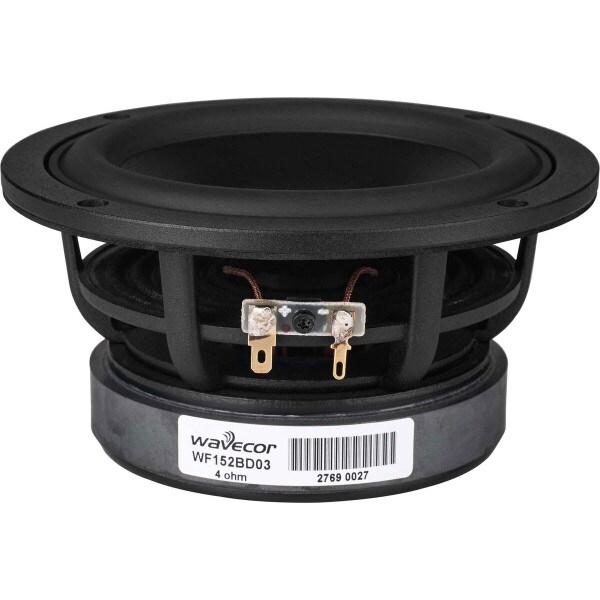

Wavecor WF152BD03, 152mm (5.5in / 5-1/2in) Paper Cone Midbass, with 32mm Voice Coil, 4ohm.
CA$190.40Each
- WF152BD03
- WAVECOR
Wavecor WF152BD03, 152mm (5.5in / 5-1/2in) Paper Cone Midbass, with 32mm Voice Coil, 4ohm.
| Product Specifications | |
|---|---|
| Manufacturer | WAVECOR |
| Speaker Type | Paper Cone Midbass |
| Nominal Diameter | 15cm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 70 W |
| Frequency Response | 50 Hz |
| Sensitivity | 91 dB |
| Voice Coil Diameter | 32mm |
The 6” transducers WF152BD03 (4 ohm) and WF152BD04 (8 ohm) were designed as high performance bass and midrange units for compact monitors and high-end hi-fi speakers.
Features
- Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
- Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
- Black coated semi-air-dried paper cone
- Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
- Vented voice coil former for reduced distortion and compression
- Vented center pole with dual flares for reduced noise level at large cone excursions
- Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
- Large motor with 1.25” voice coil diameter for better control and power handling
- Built-in alu field-stabilizing ring for reduced distortion at high levels
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Black motor parts for better heat transfer to the surrounding air
- Conex spider for better durability under extreme conditions
- Gold plated terminals to ensure long-term trouble free connection
| FILENAME | ACTION |
|---|---|
| WF152BD03_04.pdf | Download |
