TW030WA12
10 left in stock

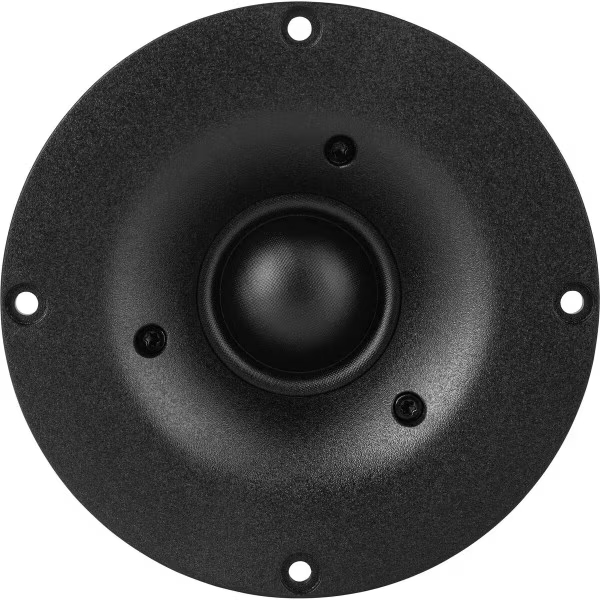

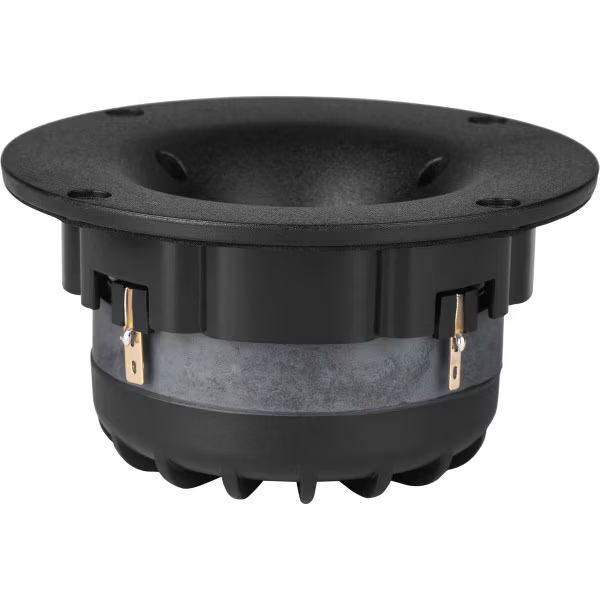

Wavecor TW030WA12, 30mm (1.25in / 1-1/4in) Textile Dome Waveguide Tweeter, 8ohm.
CA$120.99Each
- TW030WA12
- WAVECOR
Wavecor TW030WA12, 30mm (1.25in / 1-1/4in) Textile Dome Waveguide Tweeter, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | WAVECOR |
| Tweeter Type | Textile 12cm WAV China Tweeter |
| Cone / Dome Diameter | 30mm |
| Impedance | 8 ohms |
| Power Handling (RMS) | |
| Frequency Response | 1500 - 25000 Hz |
| Sensitivity | 91 dB |
TW030WA12 are tweeters designed for the most demanding applications, where low resonance frequency, high sensitivity and power handling, controlled dispersion, and a very wide frequency range are required.
Features
- Featuring waveguide face plate for controlled dispersion, offering optimized off-axis and power response
- 30 mm voice coil design with high power handling, and low resonance frequency
- Copper clad center pole yielding very low voice coil inductance for reduced distortion and increased high frequency output
- Internal volumes for low resonance frequency and distortion
- Precision-coated textile diaphragm for improved consistency and high-frequency extension
- Optimized dome shape for ultra high frequency cutoff
- Vented voice coil former for reduced distortion and compression
- Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
- Build-in cavities under dome/edge to equalize pressure for lower distortion and lower resonance frequency
- Flexible lead wires for higher power handling and larger excursion
- Gold plated terminals to prevent oxidation and ensure long-term reliable connection
- Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing
| FILENAME | ACTION |
|---|---|
| TW030WA11_12.pdf | Download |
