TW030WA06
7 left in stock

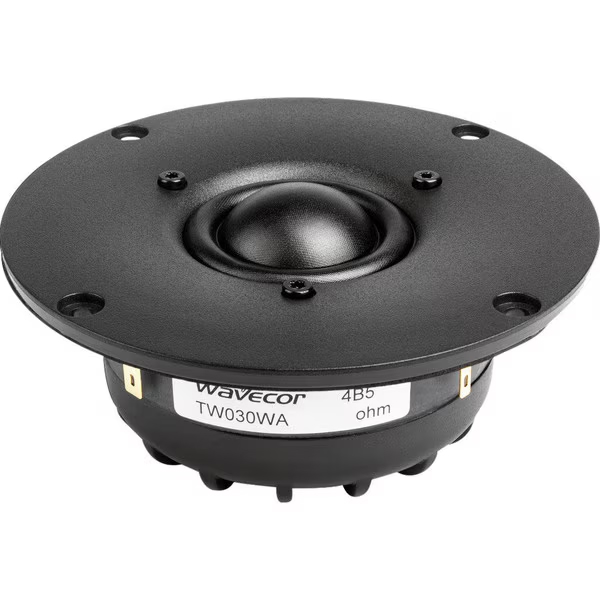

Wavecor TW030WA06, 30mm (1.125in / 1-1/4in) Textile Dome Tweeter, 4ohm, 115mm Faceplate
CA$110.43Each
- TW030WA06
- WAVECOR
Wavecor TW030WA06, 30mm (1.125in / 1-1/4in) Textile Dome Tweeter, 4ohm, 115mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | WAVECOR |
| Tweeter Type | Textile Dome Tweeter |
| Cone / Dome Diameter | 30mm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 60 W |
| Frequency Response | 1500 - 30000 Hz |
| Sensitivity | 91 dB |
TW030WA06: 4 ohm, with ferro fluid
Real high-end tweeter design with extremely low resonance frequency and distortion.
Thanks to the extensive internal venting between three internal cavities no air inside is trapped. This feature extends the usable frequency range downwards to an extend very rarely found on tweeters.
Adding the high power handling this tweeter is the natural candidate for high-end 2-way speaker systems.
Features
- Precision-coated textile diaphragm for improved consistency and high-frequency extension
- Extreme internal venting through pole, voice coil former, and top plate to 3 internal chambers
- Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
- Reflection-free rear chamber design with solid reinforcement ribs
- Large ferrite magnet for improved efficiency and transient response
- With or without high-stability light ferro fluid
- Flexible lead wires for higher power handling and larger excursion
- Black anodized magnet structure for increased power handling and reduced power compression
- Gold plated terminals to prevent oxidation for long-term reliable connection
- Delivered with EVA gasket attached for hassle-free mounting and secure cabinet sealing
| FILENAME | ACTION |
|---|---|
| TW030WA05_06_07_08.pdf | Download |
