AL170
2 left in stock

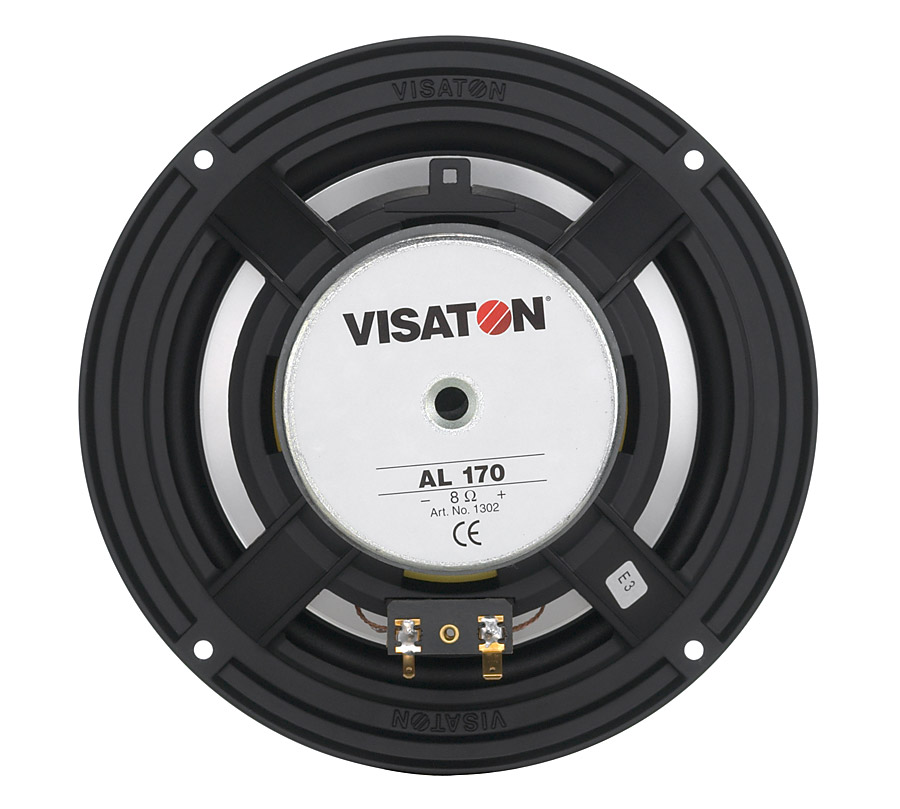

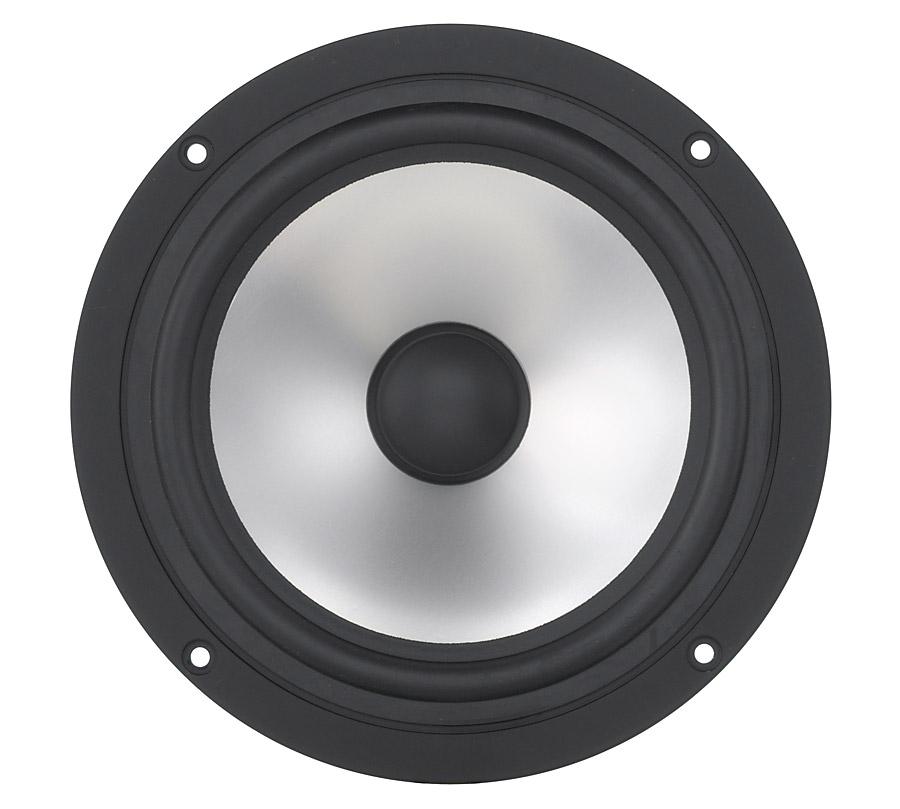

Visaton AL170, 180mm (7in) Aluminium Cone Woofer, with 25mm Voice Coil, #1302, 8ohm.
CA$291.88Each
- AL170
- VISATON
Visaton AL170, 180mm (7in) Aluminium Cone Woofer, with 25mm Voice Coil, #1302, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | VISATON |
| Speaker Type | Aluminum Cone Woofer |
| Nominal Diameter | 18cm |
| Impedance | 6 ohms |
| Power Handling (RMS) | 70 W |
| Frequency Response | 38 - 8000 Hz |
| Sensitivity | 88 dB |
| Voice Coil Diameter | 25mm |
17 cm (6.5") High-End low midrange driver with stiff, anodized aluminium cone, solid aluminium die-cast basket and elastic rubber surround. Extremely low electrical and mechanical losses due to vented pole plate, vented damper and capton voice-coil. Extremely long cone displacement due to long stroke voice coil. Suitable as low-midrange driver for 2-, 3- and 4-way high-end applications up to 2500 Hz.
| FILENAME | ACTION |
|---|---|
| AL170 SPEC SHEETS.pdf | Download |
