MR18REXXF
- MR18REXXF
- SEAS PRESTIGE

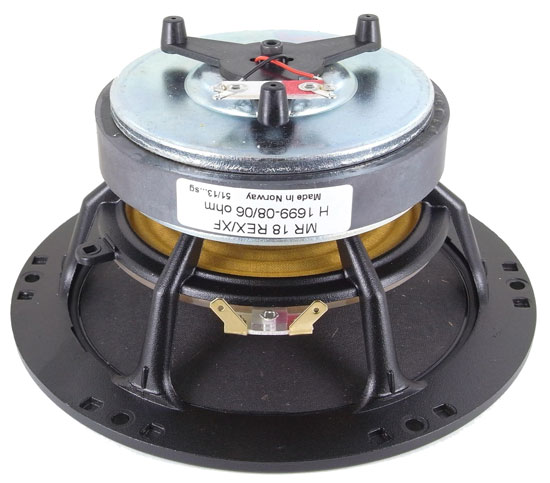

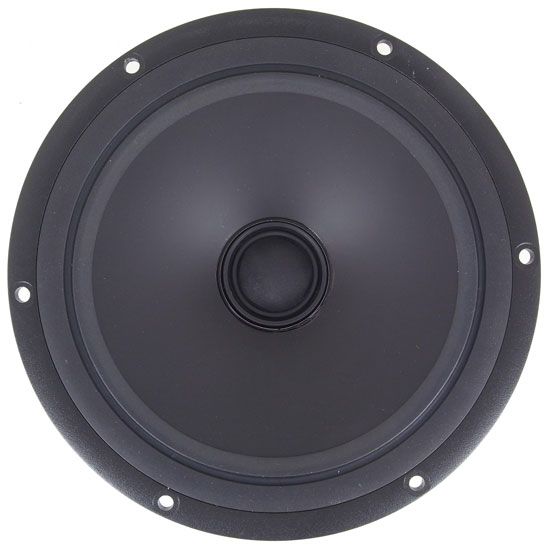

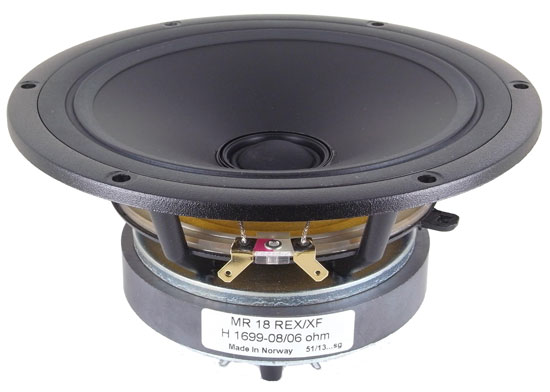

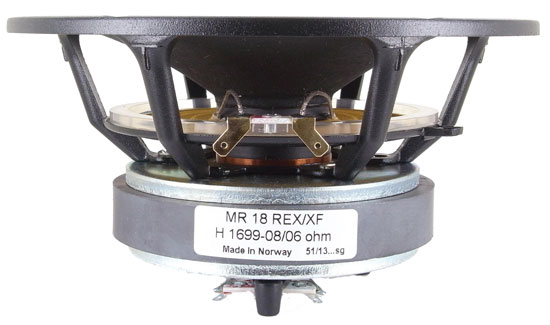

Seas Prestige MR18REXXF, 176mm (7in) Reed Cone Coax, with 39mm Voice Coil and 26mm Textile Dome Neodymium Tweeter, H1699, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SEAS PRESTIGE |
| Speaker Type | Read Cone Coax |
| Nominal Diameter | 18cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 80 W |
| Frequency Response | 200 - 2200 Hz |
| Sensitivity | 89 dB |
| Voice Coil Diameter | 39mm |
The MR18REX/XF is a midrange coaxial loudspeaker providing high quality sound in a very compact format. The cone of the midrange acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.
The coaxially arranged precoated fabric dome high frequency unit has a smooth frequency response, and integrates with the cone driver to a point source. Voice coil windings immersed in magnetic fl uid increase short term power handling capacity and reduce the compression at high power levels.
The pre-coated reed-paper cone acts as a piston throughout the recommended frequency range.
The completely new rubber surround reduces resonances and prevents surround break up in the midrange band. The surround’s small inverted roll, combined with a profi le that follows the shape of the cone, results in almost total elimination of diffraction effects on the tweeter’s output.
| FILENAME | ACTION |
|---|---|
| mr18rexxf.pdf | Download |
