22TFF06
- 22TFF06
- SEAS PRESTIGE

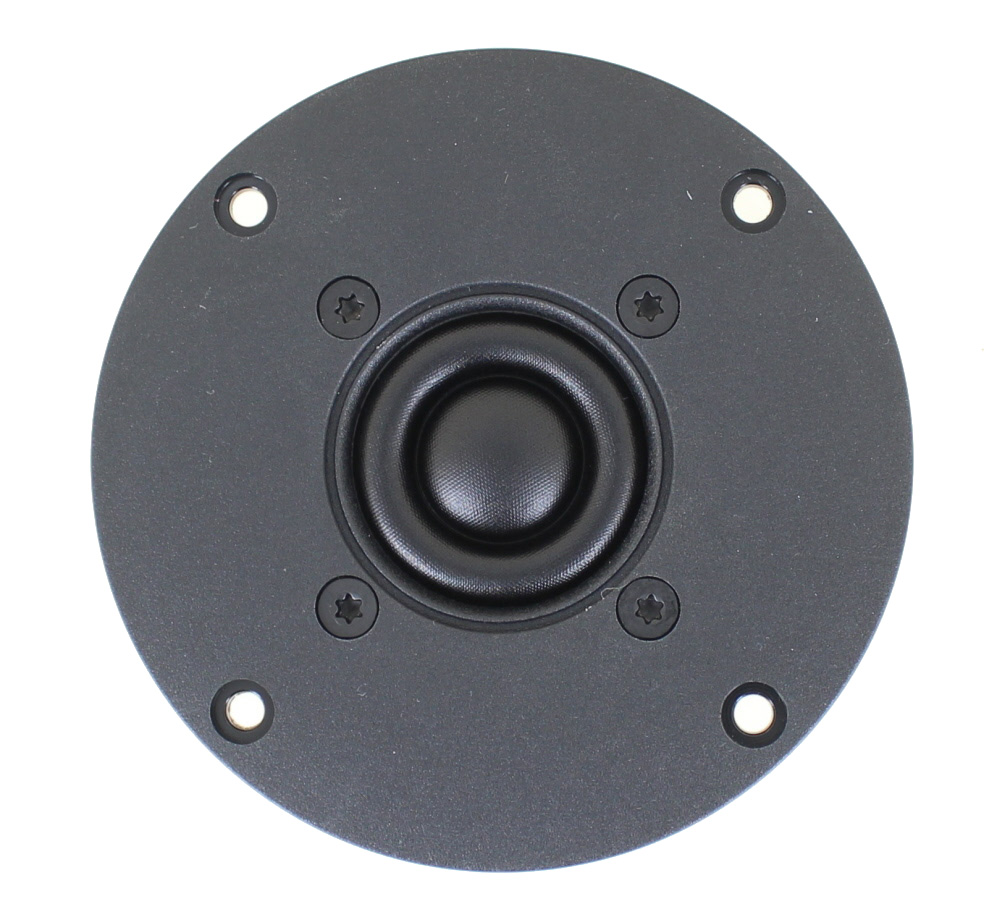

Seas Prestige 22TFF, 20mm (0.75in / 3/4in) Textile Dome Tweeter, H1280, 6ohm, 98mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | SEAS PRESTIGE |
| Tweeter Type | Textile Dome Tweeter |
| Cone / Dome Diameter | 20mm |
| Impedance | 6 ohms |
| Power Handling (RMS) | 180 W (short term) | 90 W (long term) |
| Frequency Response | 2500 - 20000 H |
| Characteristic Sensitivity (2.83V, 1m) | 91 dB |
| Weight | 0.5Kg |
22TFF is a High Definition soft dome tweeter with a wide surround combining the high frequency dispersion of a ¾” dome with the low frequency characteristics of a 1” dome.
One-piece Sonomex dome and surround allows for very tight production tolerances and high consistency, with a smooth and extended frequency response.
Voice coil windings immersed in magnetic fluid for increased power handling capacity and reduced compression at high power levels.
The chassis is moulded from a stiff and stable glass fibre reinforced polymer material, and its front design offers optimum radiation conditions.
Large ferrite magnet for high efficiency, and good transient response.
| FILENAME | ACTION |
|---|---|
| 22tff.pdf | Download |
