W15LY001
- W15LY001
- SEAS EXCEL

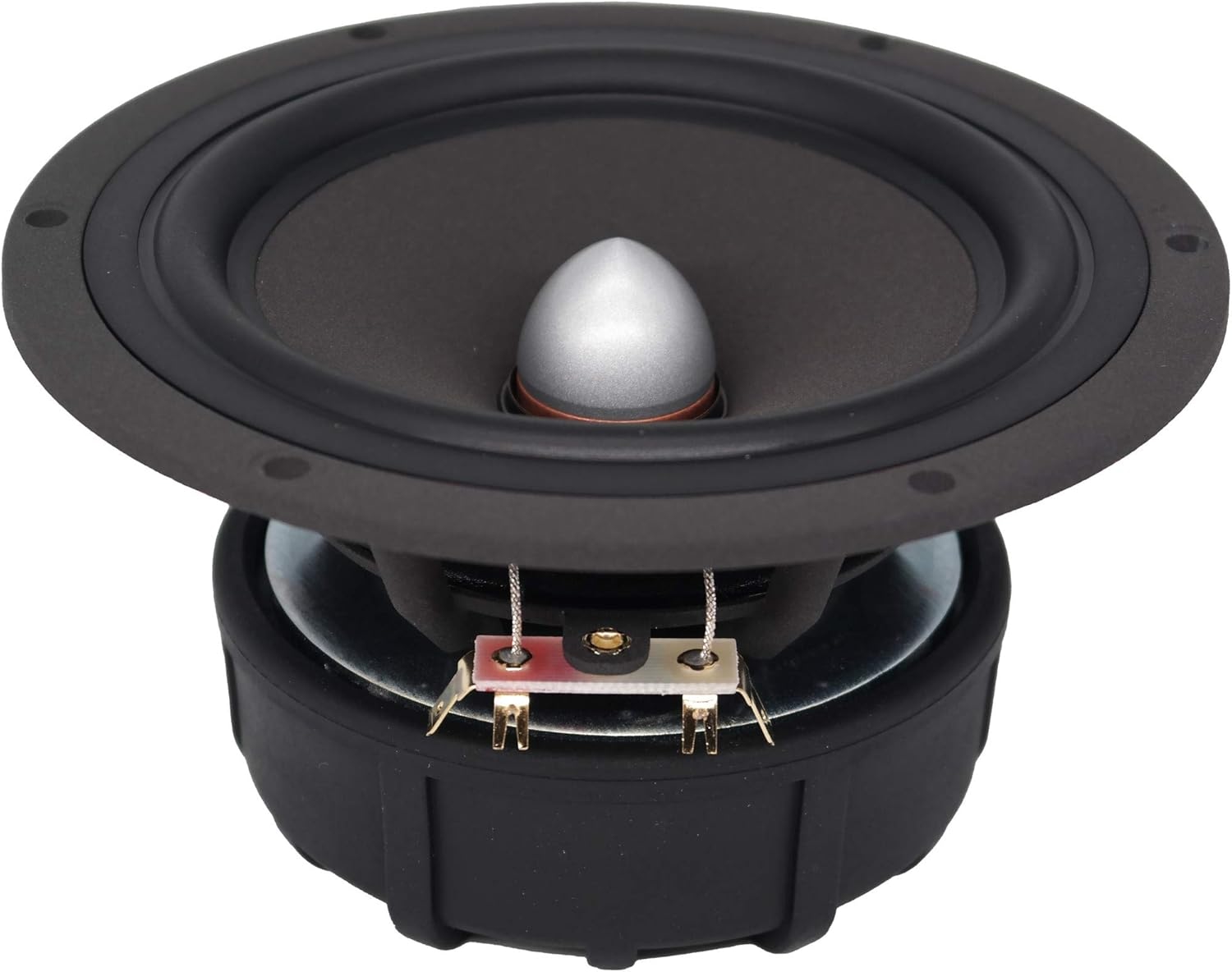

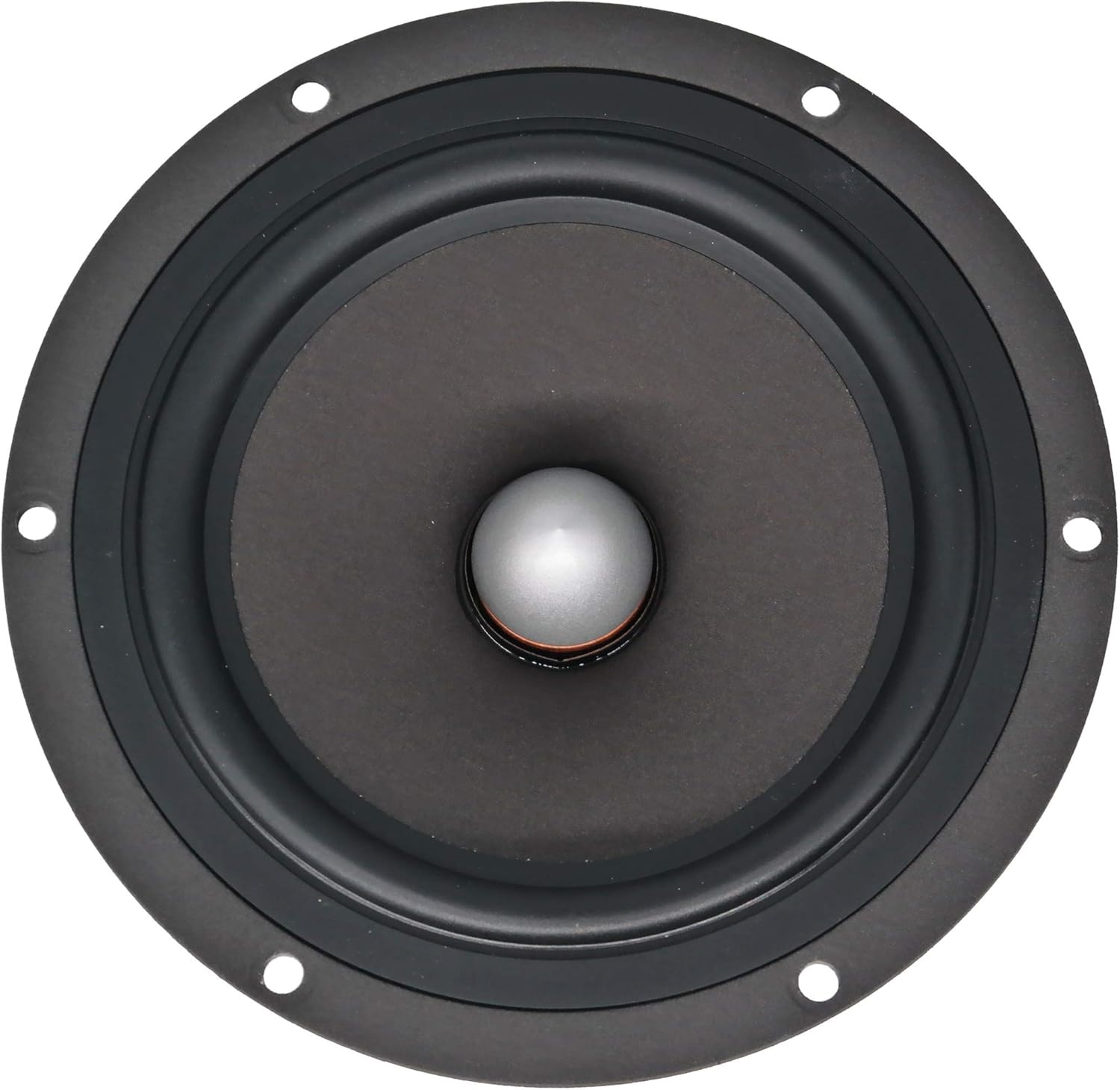

Seas Excel W15LY001, 146mm (5.5in / 5-1/2in) Nextel Cone Mid Bass, with 26mm Voice Coil, E0041, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SEAS EXCEL |
| Speaker Type | Nextel Cone Midbass |
| Nominal Diameter | 15cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 60 W |
| Frequency Response | 50 - 4000 Hz |
| Sensitivity | 86.5 dB |
| Voice Coil Diameter | 26mm |
An adaptive rubber surround provides an ideal match to the cone over the total frequency range.
A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion.
A large magnet system, together with a very long and light weight CCAW voice coil allow good coil excursion with low distortion and excellent transient response.
Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.
Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.
Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.
| FILENAME | ACTION |
|---|---|
| w15ly001.pdf | Download |
