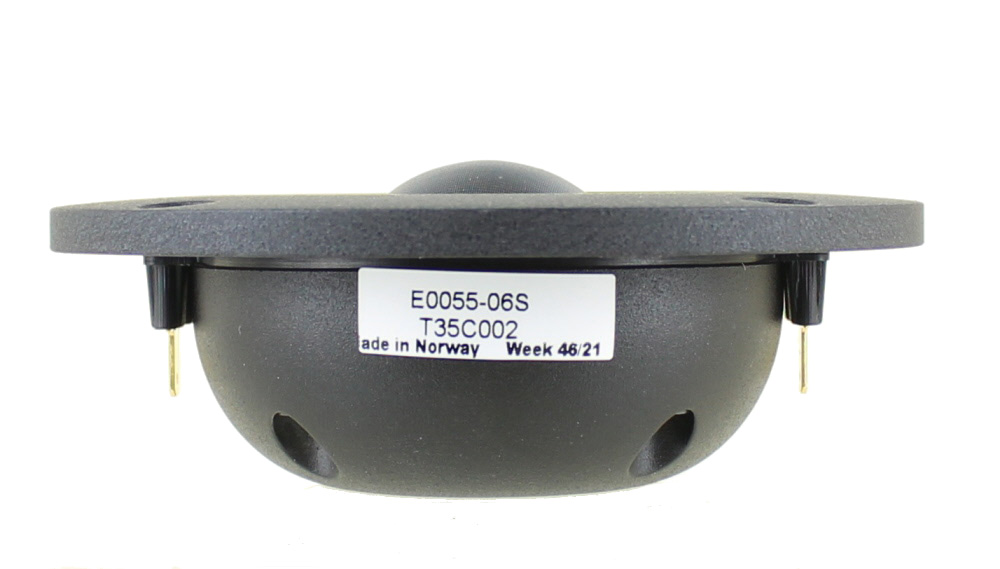

Seas Excel T35C002, 35mm (1.5in / 1-1/2in) Textile Dome Neodymium Tweeter, E0055, 6ohm, 110mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | SEAS EXCEL |
| Tweeter Type | Textile Dome Neodymium Tweeter, E0055 |
| Cone / Dome Diameter | 35mm |
| Impedance | 6 ohms |
| Power Handling (RMS) | 100 W |
| Frequency Response | 1500 - 25000 Hz |
| Sensitivity | 95 dB |
The T35C002 is a classic dome midrange tweeter with high sensitivity and a smooth, extended frequency response.

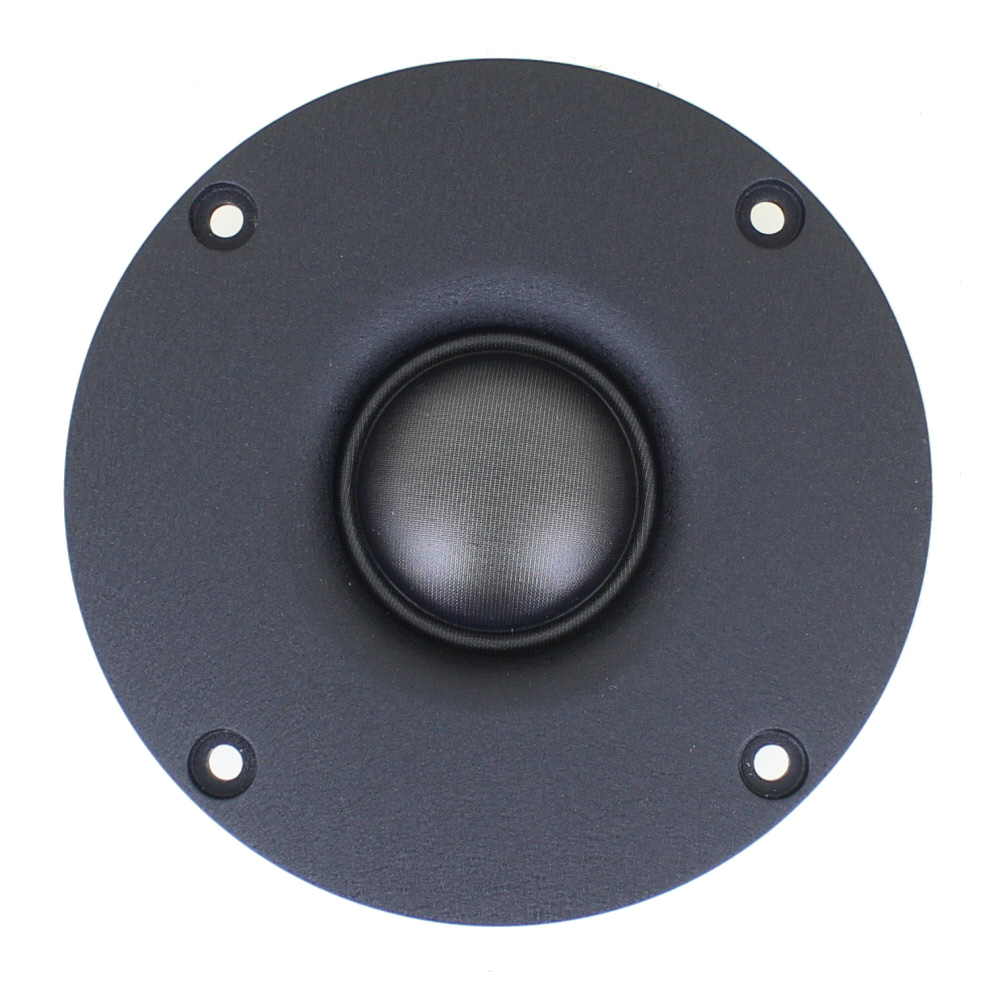

A coated fabric dome with integral surround manufactured by Dr. K. Müller in Germany ensures excellent performance and consistency. This supplier was among the first in the world to offer fabric dome diaphragms, and did produce the diaphragm for the famous 1.5” Dome Tweeter H087, developed by Seas in 1968.

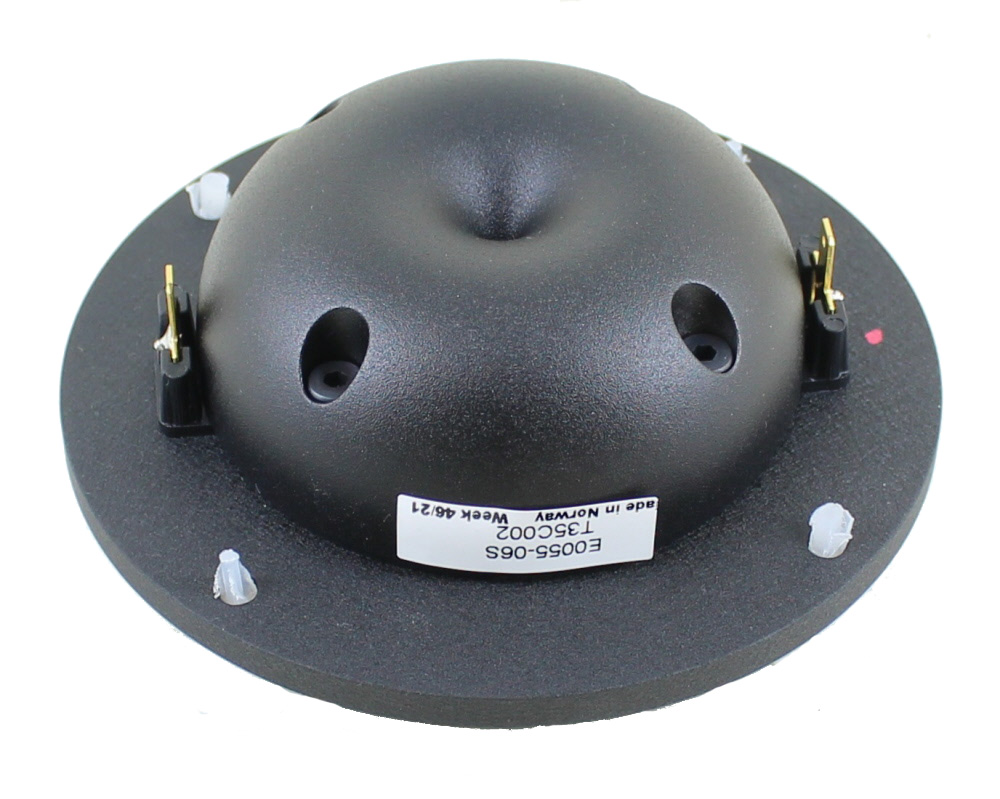

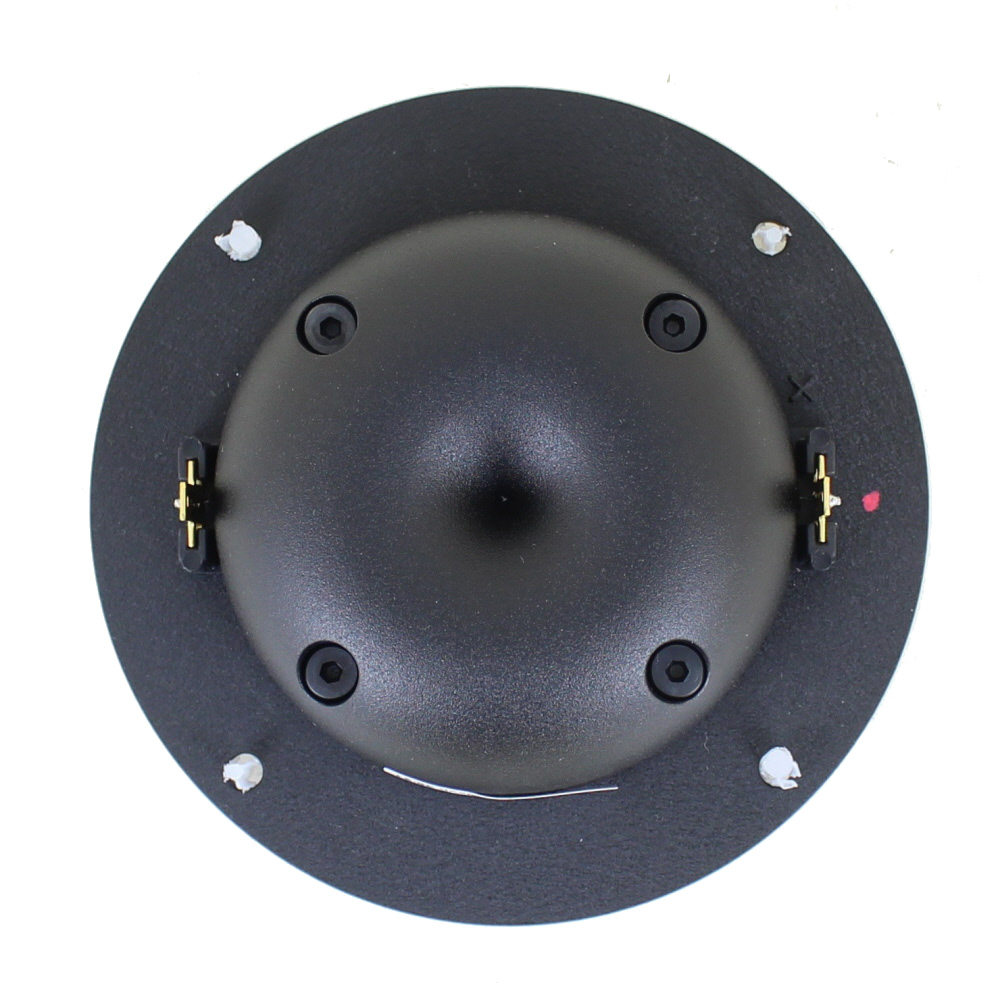

A small, high efficiency Neodymium ring magnet in a carefully designed system contributes to high sensitivity and low distortion. The top plate and T-yoke are CNC machined for excellent precision. A well damped vented pole and a rigid rear chamber ensure a low resonance frequency and smooth response.
A generously underhung 35mm voice coil wound from copper-clad aluminium wire further enhances the sensitivity. Flexible lead-out wires and venting holes in the aluminium coil former help reduce noise to a minimum.
A 7 mm thick precision die-cast aluminium front plate with moderate horn loading ensures linear frequency response and represents an extremely stable platform for the magnet system and the moving parts.
