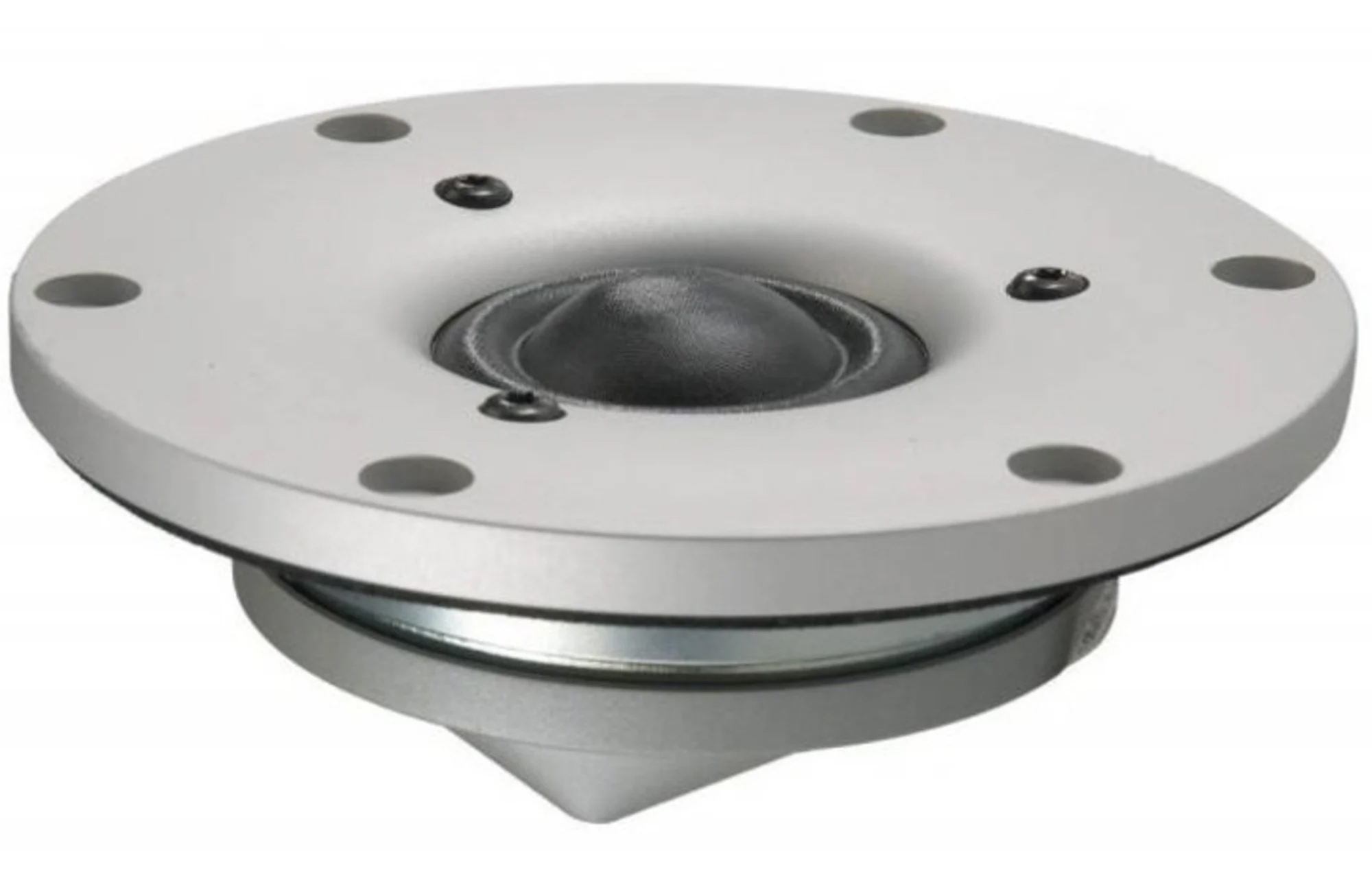

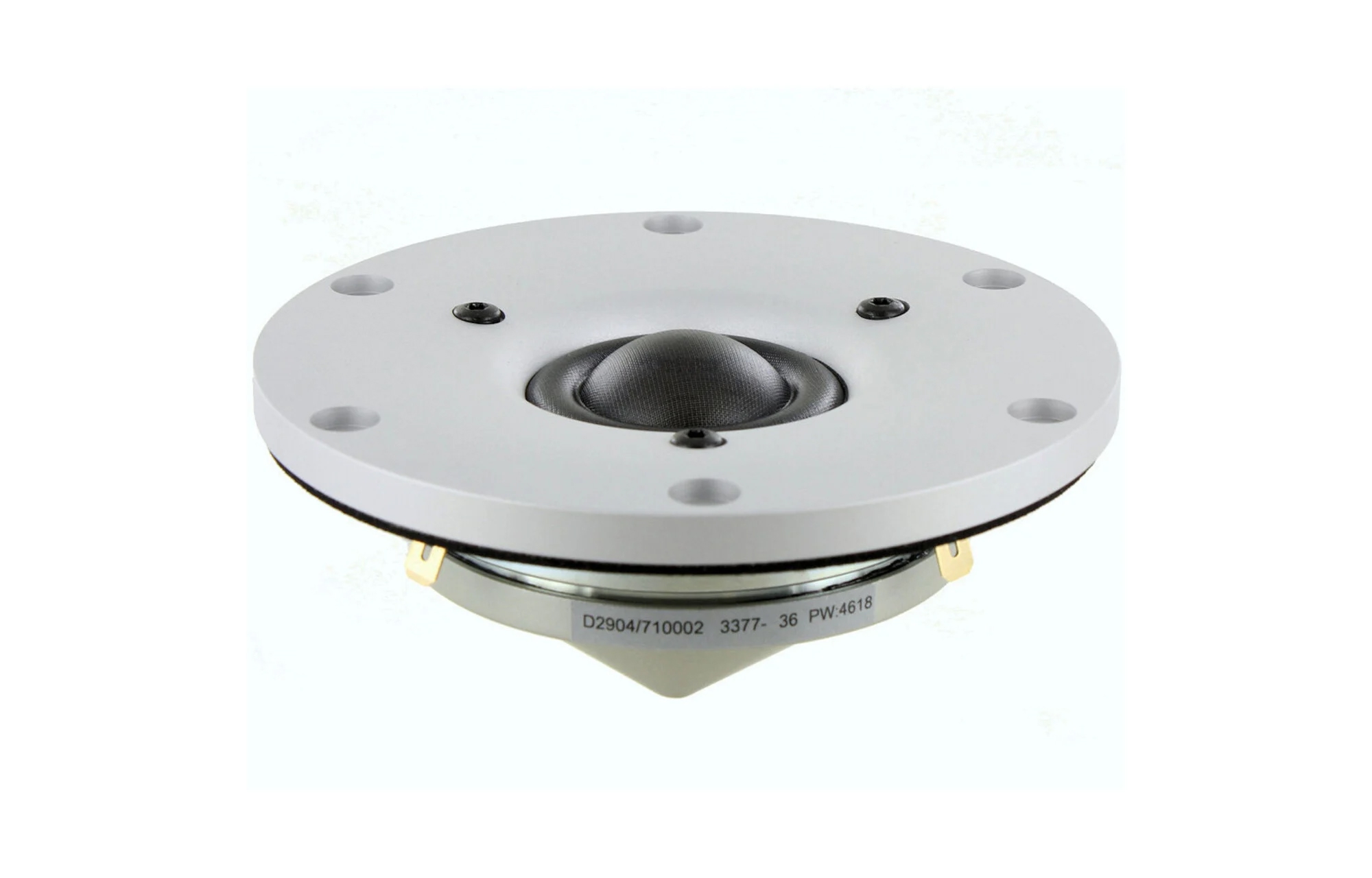

Scan-Speak Revelator D2904/7100-02, 25mm (1in) Ring Dome Tweeter, 4ohm, 104mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | SCAN-SPEAK |
| Tweeter Type | Ring Dome Tweeter |
| Cone / Dome Diameter | 25mm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 150 W |
| Resonance Frequency | 520 Hz |
| Sensitivity | 94.4 dB |
The Revelator Tweeters large roll surround technology represents a breakthrough in overall performance, with outstanding off-axis response, high output capability and low resonance frequency. Additional enhancements have been made to reduce distortion and power compression, such as large neodymium magnet systems for high sensitivity, and a careful design to optimise airflow in the chambers.
- 1" Coated Textile Diaphragm
- Large Roll Surround f. Wide Dispersion
- Patented Symmetrical Drive (SD-2) motor
- Large Ring Neo Magnet f. High Output

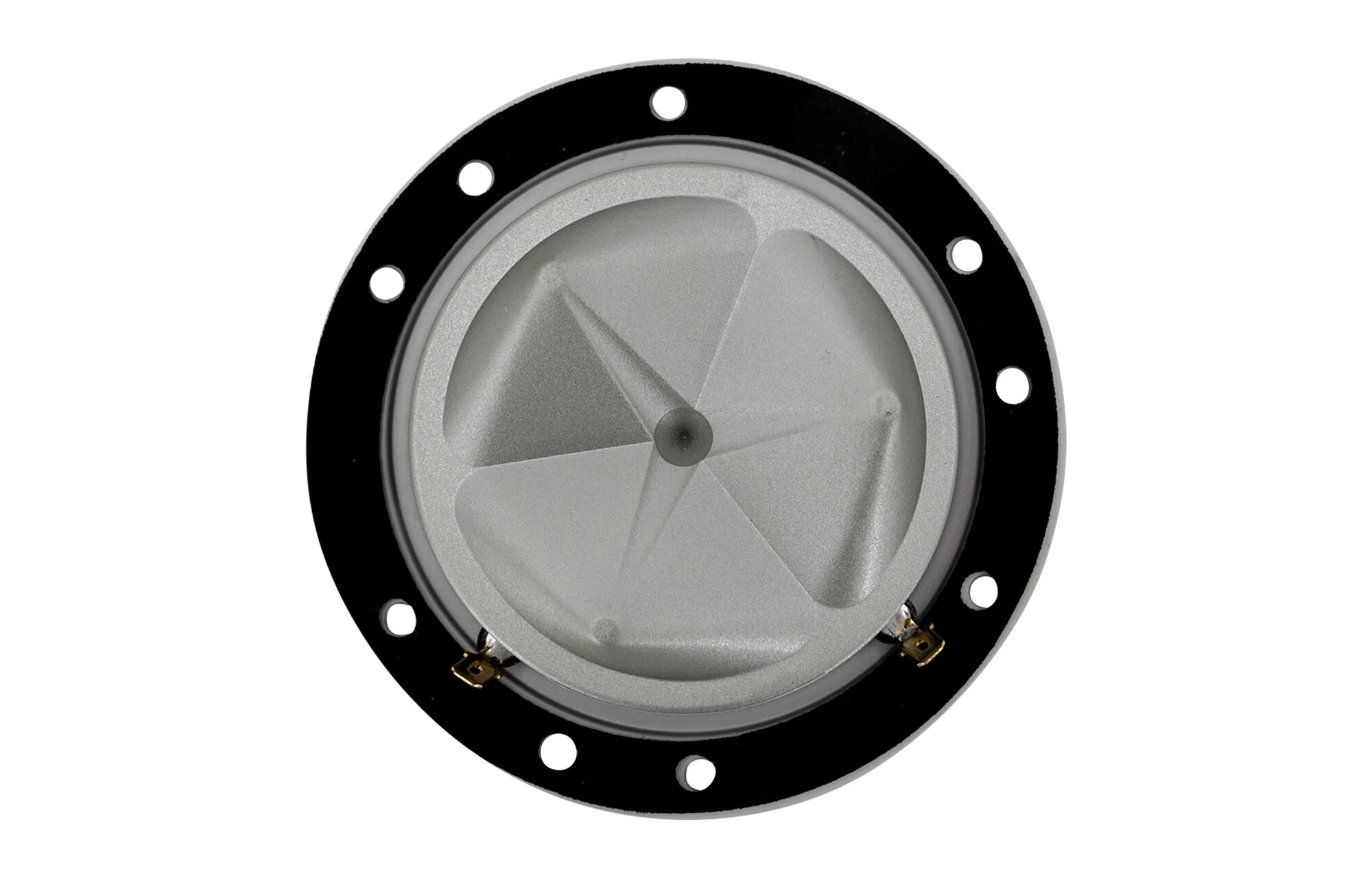

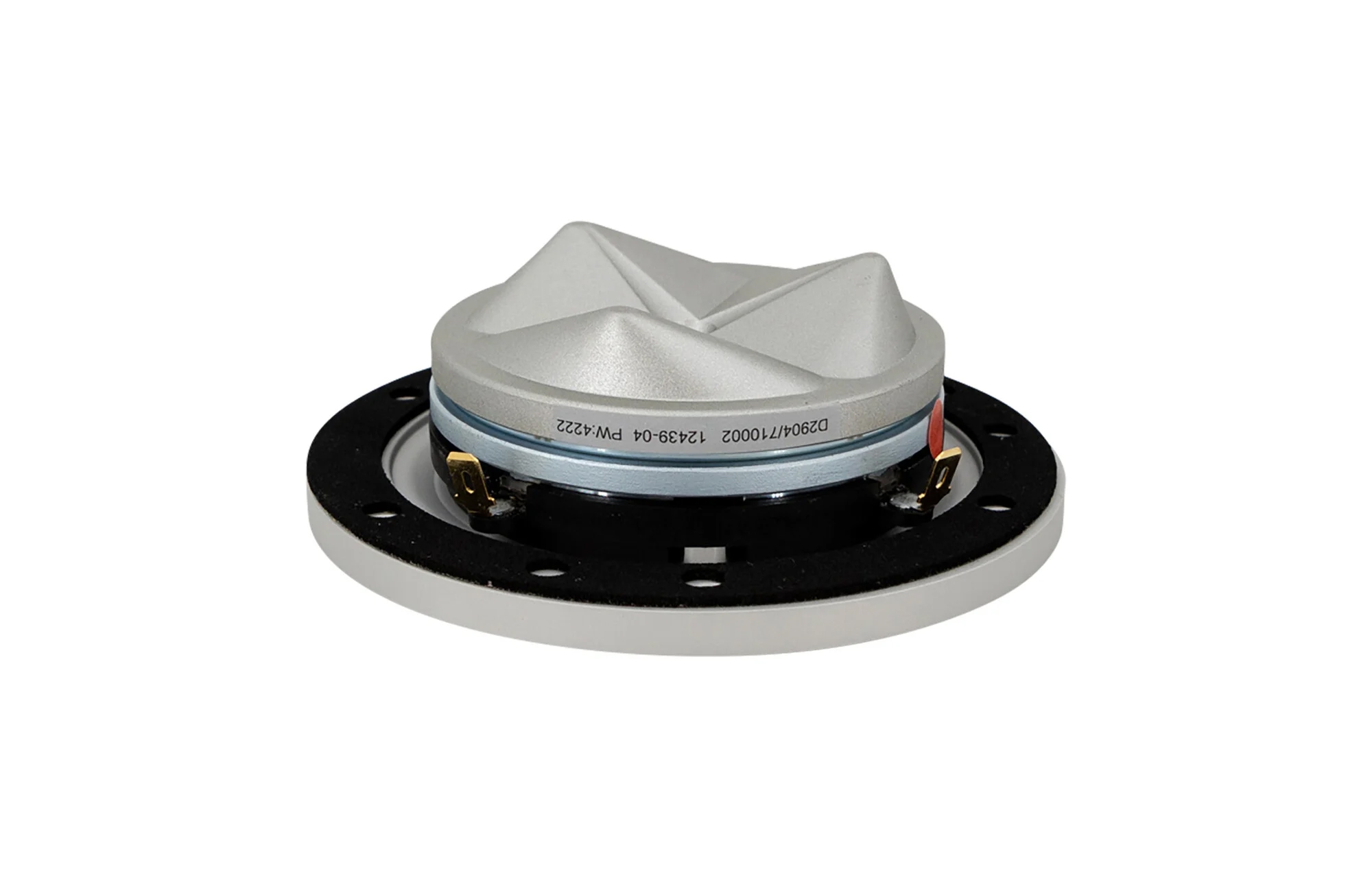

- Non Resonant Alu Rear Chamber

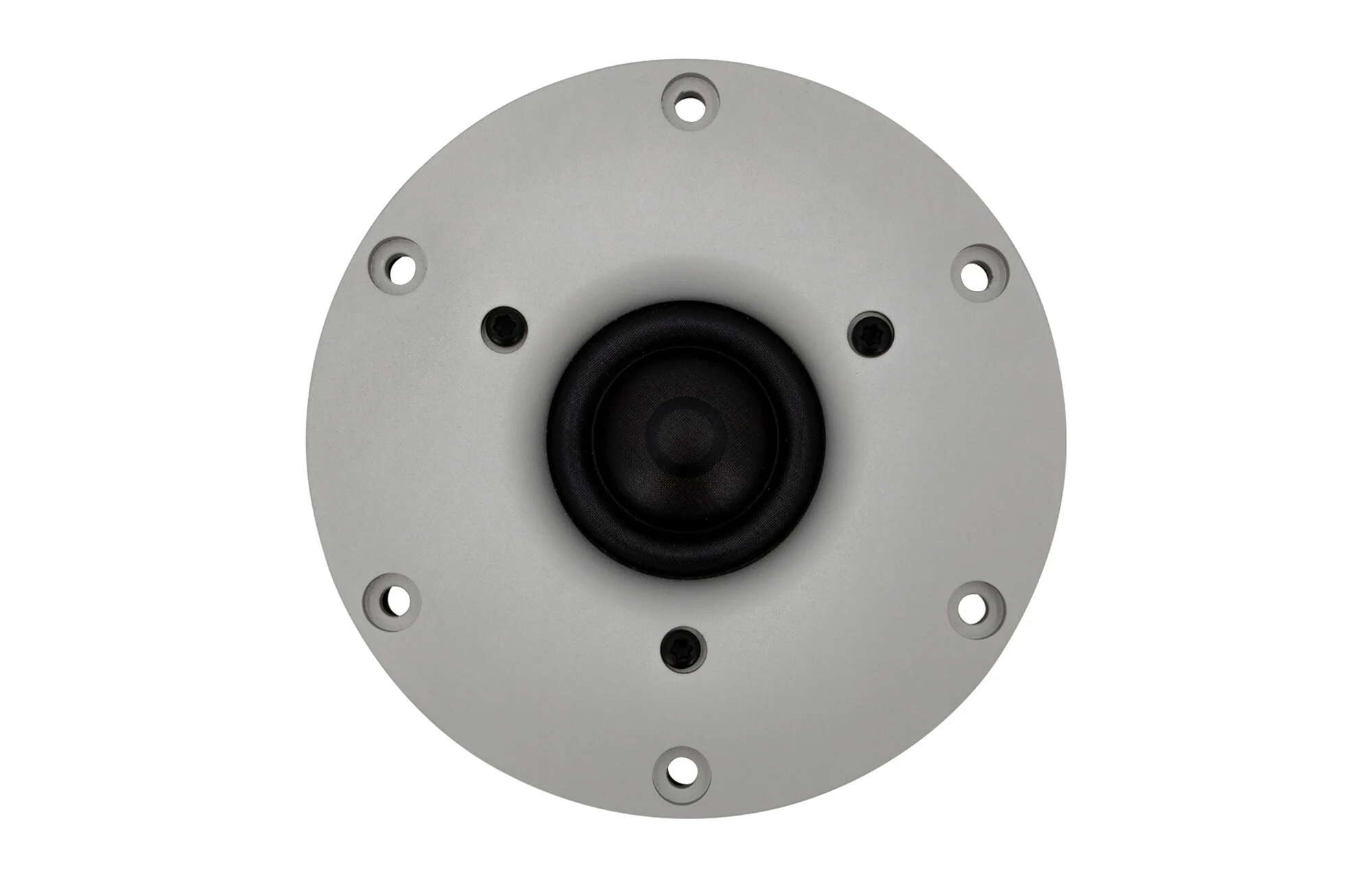

- Silver Anodized Machined Alu Face Plate
| FILENAME | ACTION |
|---|---|
| d29047100.pdf | Download |
