28W/4878T01
6 left in stock

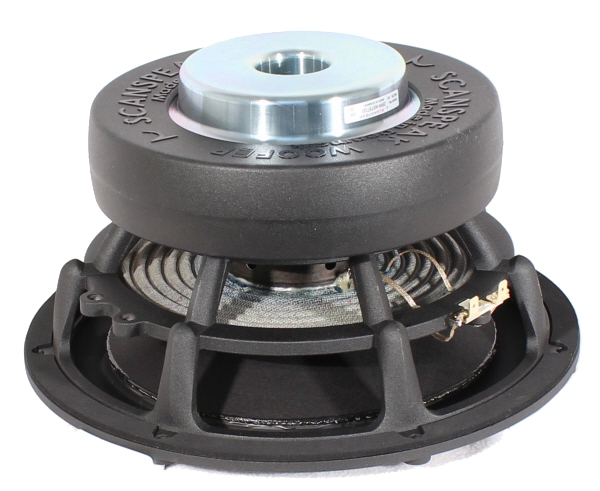

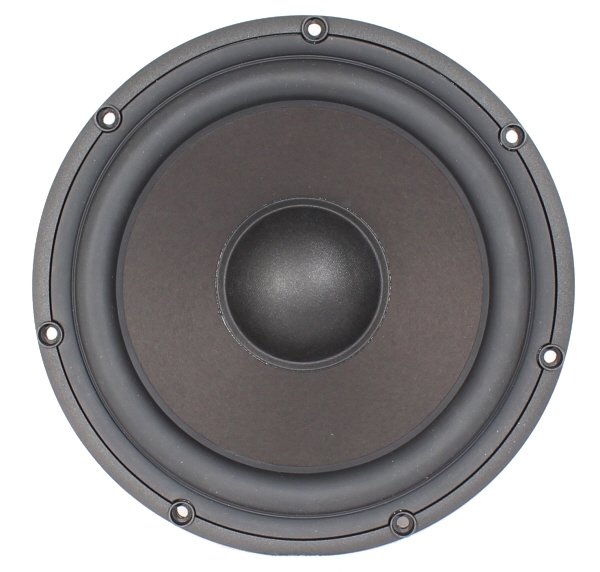

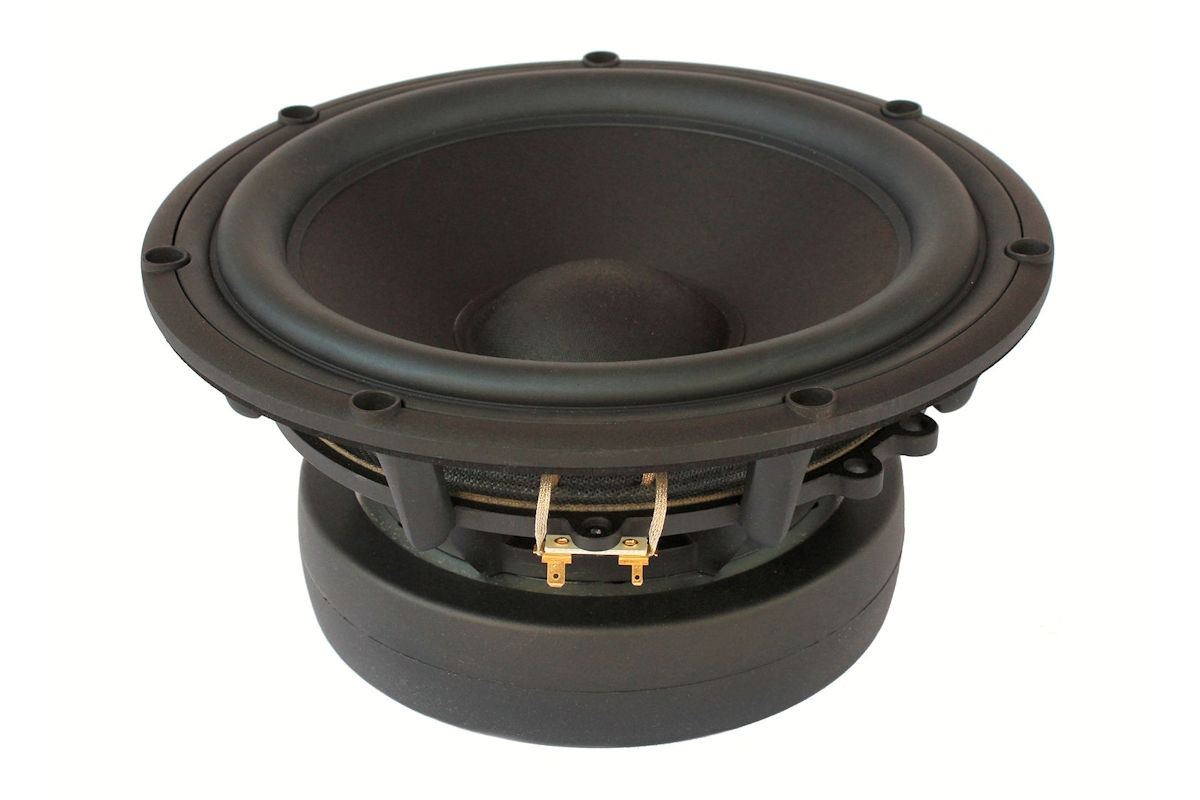

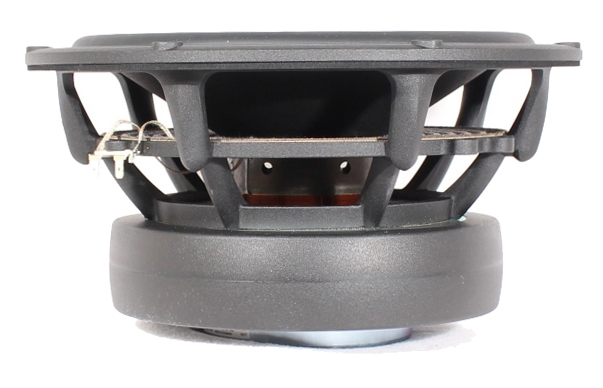

Scan-Speak Revelator 28W/4878T01, 280mm (11in) Paper Cone Woofer, with 75mm Voice Coil, 4ohm.
CA$907.14Each
- 28W/4878T01
- SCAN-SPEAK
Scan-Speak Revelator 28W/4878T01, 280mm (11in) Paper Cone Woofer, with 75mm Voice Coil, 4ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SCAN-SPEAK |
| Speaker Type | Paper Cone Woofer |
| Nominal Diameter | 28cm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 200 W |
| Frequency Response | 23 Hz |
| Sensitivity | 91 dB |
| Voice Coil Diameter | 75mm |
The 28W/4878T01 is a very powerful 28cm woofer, with its large 3” voice coil, extreme linear excursion and low resonance frequency is it perfect to reproduce the deepest frequencies. It features a paper-sandwich cone with very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction.
- Paper Sandwich cone
- Patented Symmetrical Drive motor
- Spider with balanced tinsel leads
- Long linear excursion
- 3" Voice coil, Titanium former, paper reinforced
- Stiff and strong die cast aluminium chassis
| FILENAME | ACTION |
|---|---|
| 28w4878t01.pdf | Download |
