15W/8530K01
6 left in stock

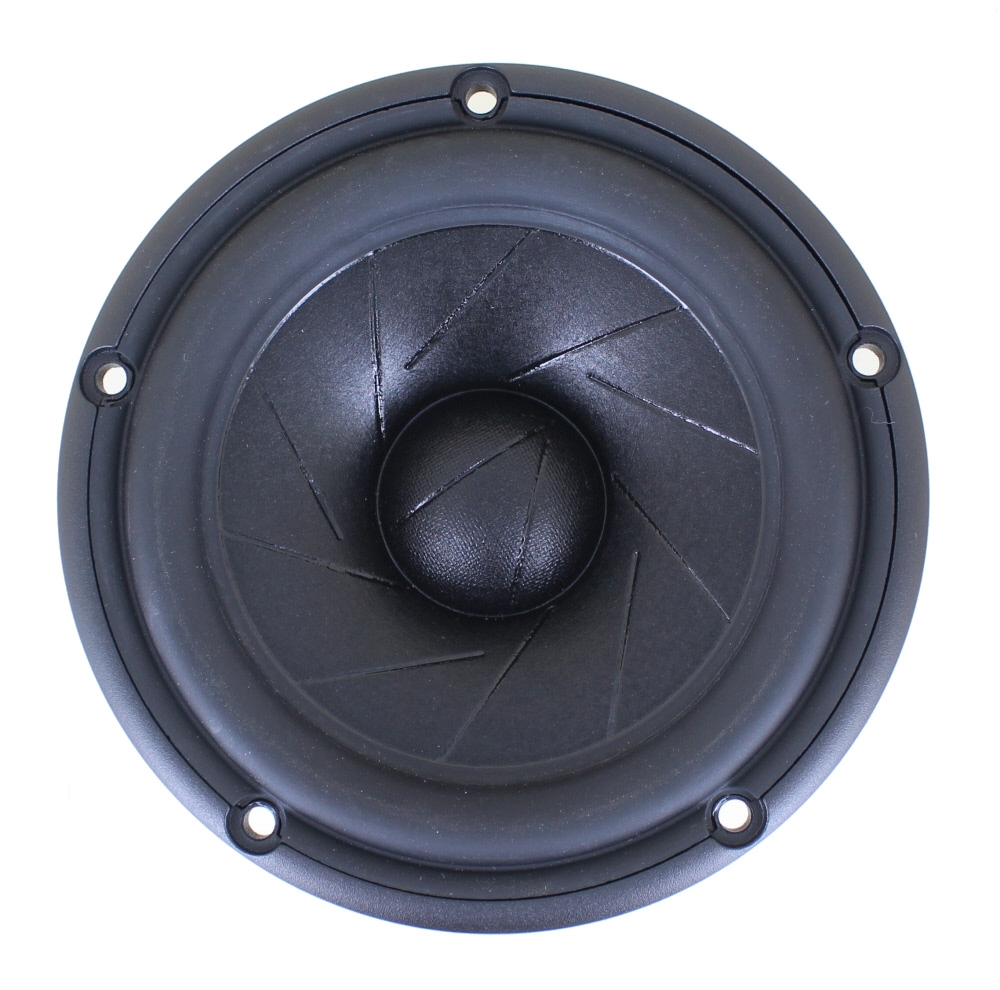

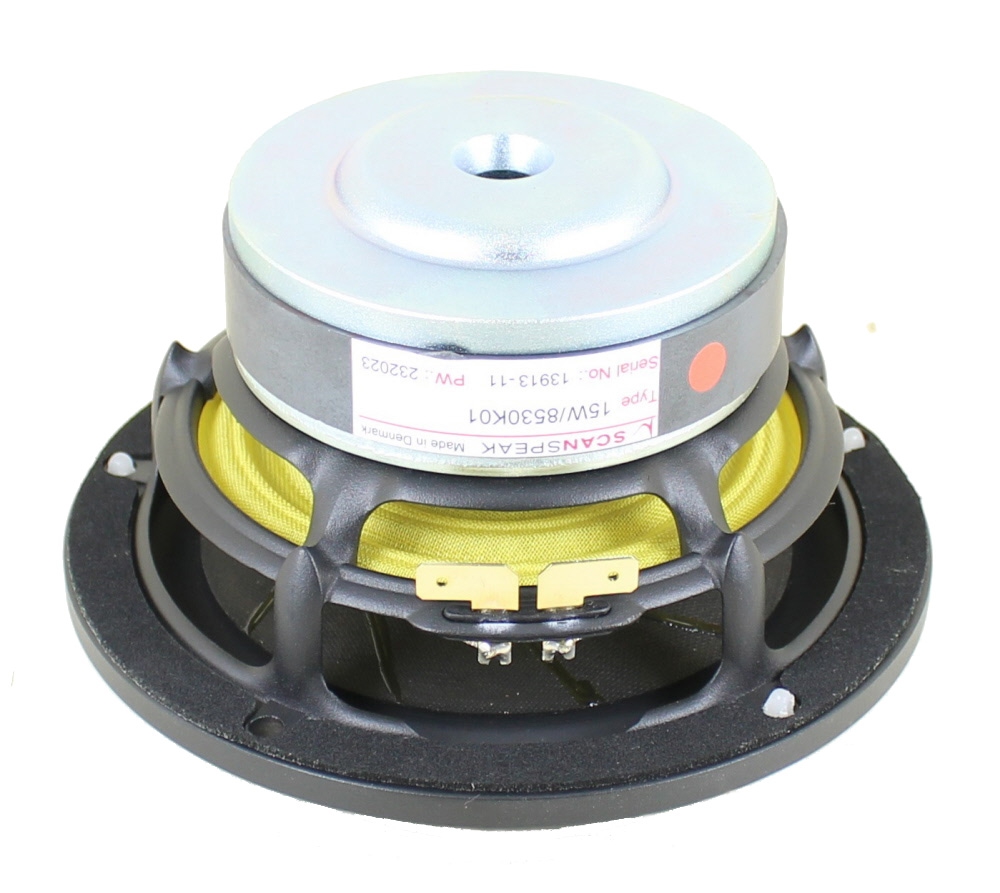

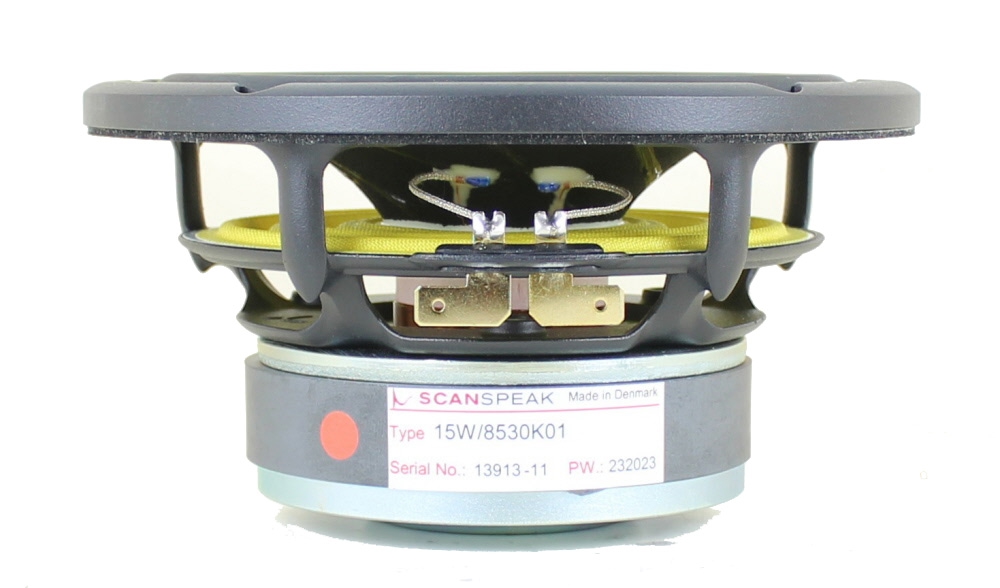

Scan-Speak Revelator 15W/8530K01, 148mm (5.5in / 5-1/2in) Paper Cone Mid-Bass, with 38mm Voice Coil, 8ohm.
CA$315.06Each
- 15W/8530K01
- SCAN-SPEAK
Scan-Speak Revelator 15W/8530K01, 148mm (5.5in / 5-1/2in) Paper Cone Mid-Bass, with 38mm Voice Coil, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SCAN-SPEAK |
| Speaker Type | Paper Cone Mid-bass |
| Nominal Diameter | 15cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 60 W |
| Resonance Frequency | 32 Hz |
| Sensitivity | 84.5 dB |
| Voice Coil Diameter | 38mm |
The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.
- Patented Symmetrical Drive Motor Design
- Sliced Cone (Controls Cone Breakups)
- Coated Paper Cone
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
| FILENAME | ACTION |
|---|---|
| 15w8530k01.pdf | Download |
