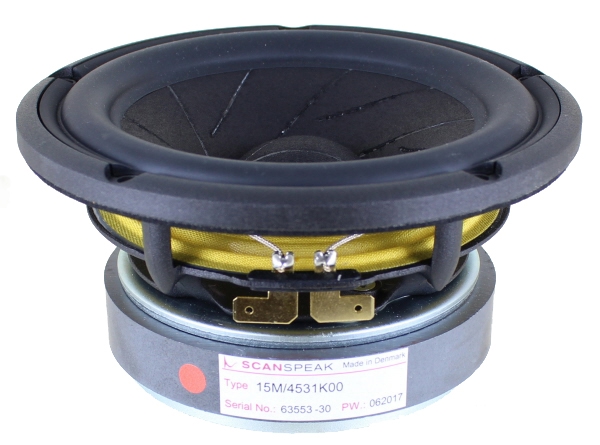

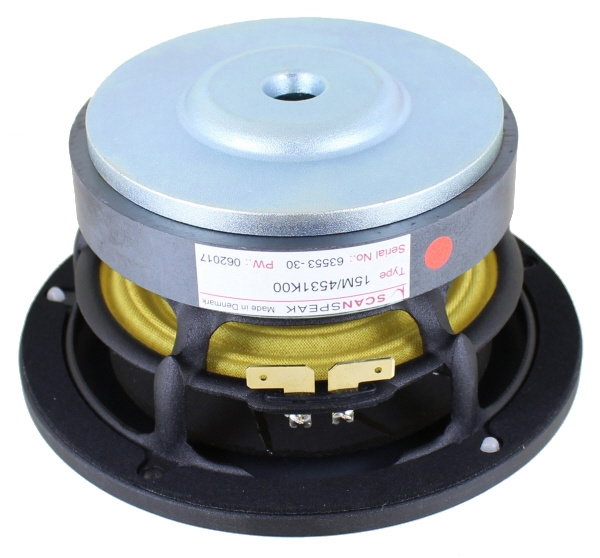

Scan-Speak Revelator 15M/4531K00, 148mm (5.5in / 5-1/2in) Paper Cone Midrange, with 38mm Voice Coil, 4ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SCAN-SPEAK |
| Speaker Type | Paper Cone Midrange |
| Nominal Diameter | 15cm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 150 W |
| Frequency Response | 100 - 6000 Hz |
| Sensitivity | 90 dB |
| Voice Coil Diameter | 38mm |
The Revelator midranges are well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.
- Excellent Midrange Reproduction
- Patented Symmetrical Drive motor design

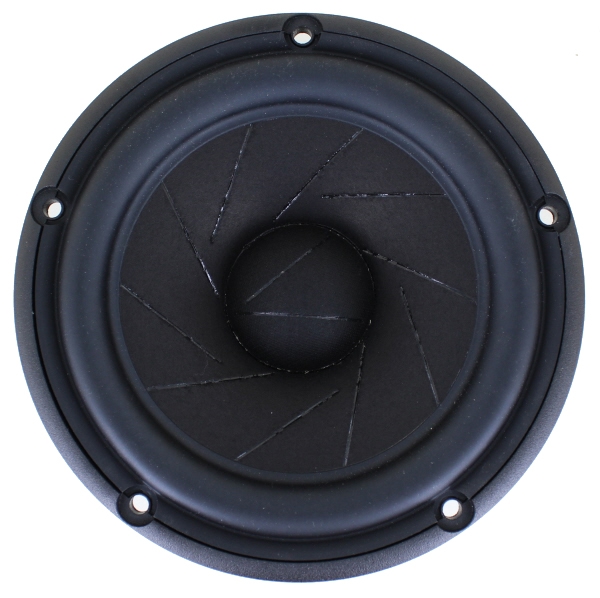

- Sliced Cone (Controls Cone Breakups)
- Low-loss linear suspension
- High Output 90dB @ 2,83V

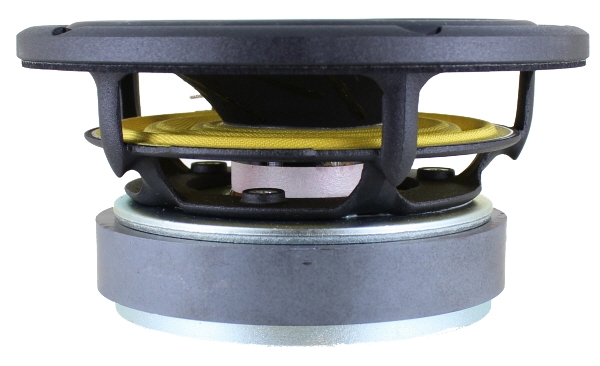

- Die cast Alu Chassis vented below spider
| FILENAME | ACTION |
|---|---|
| 15m4531k00.pdf | Download |
