D3004/6600
2 left in stock

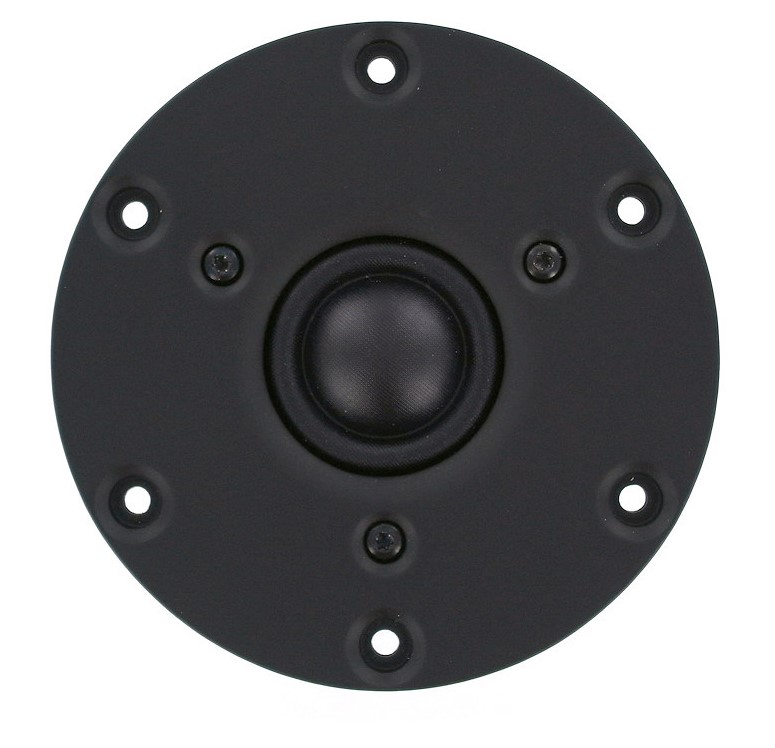

Scan-Speak Illuminator D3004/6600, 26mm (1in) Ring Dome Tweeter, 4ohm, 104mm Faceplate
CA$323.20Each
- D3004/6600
- SCAN-SPEAK
Scan-Speak Illuminator D3004/6600, 26mm (1in) Ring Dome Tweeter, 4ohm, 104mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | SCAN-SPEAK |
| Tweeter Type | Ring Dome Tweeter |
| Cone / Dome Diameter | 26mm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 150 W |
| Resonance Frequency | 470 Hz |
| Sensitivity | 91.5 dB |
The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.
- 1" Textile Dome Diaphragm
- Large Roll Surround f. Wide Dispersion
- Patented Symmetrical Drive (SD-2) motor
- AirCirc Motor Design w. 6 Neo magnets
- Die Cast Rubber Painted Alu Face Plate
| FILENAME | ACTION |
|---|---|
| d30046600.pdf | Download |
