22W/8534G00

4 left in stock

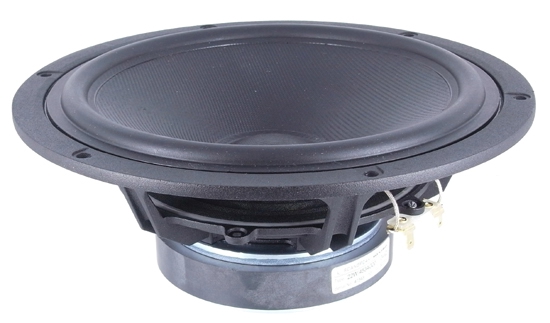

Scan-Speak Discovery 22W/8534G00, 225mm (8in) Glass Fiber Cone Woofer, with 38mm Voice Coil, 8ohm.
CA$173.82Each

Scan-Speak Discovery 22W/8534G00, 225mm (8in) Glass Fiber Cone Woofer, with 38mm Voice Coil, 8ohm.

Product Specifications
Manufacturer SCAN-SPEAK
Speaker Type Glass Fiber Cone Woofer
Nominal Diameter 23cm
Impedance 8 ohms
Power Handling (RMS) 120 W
Frequency Response 77 Hz
Sensitivity 88.8 dB
Voice Coil Diameter 38mm

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

- High Output 89dB @ 2,83V
- Low Resonance Freq. 30Hz
- Coated NRSC Fibre Glass Cone
- Magnet System w. Alu Ring
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider

FILENAME ACTION
22w8534g00.pdf Download
