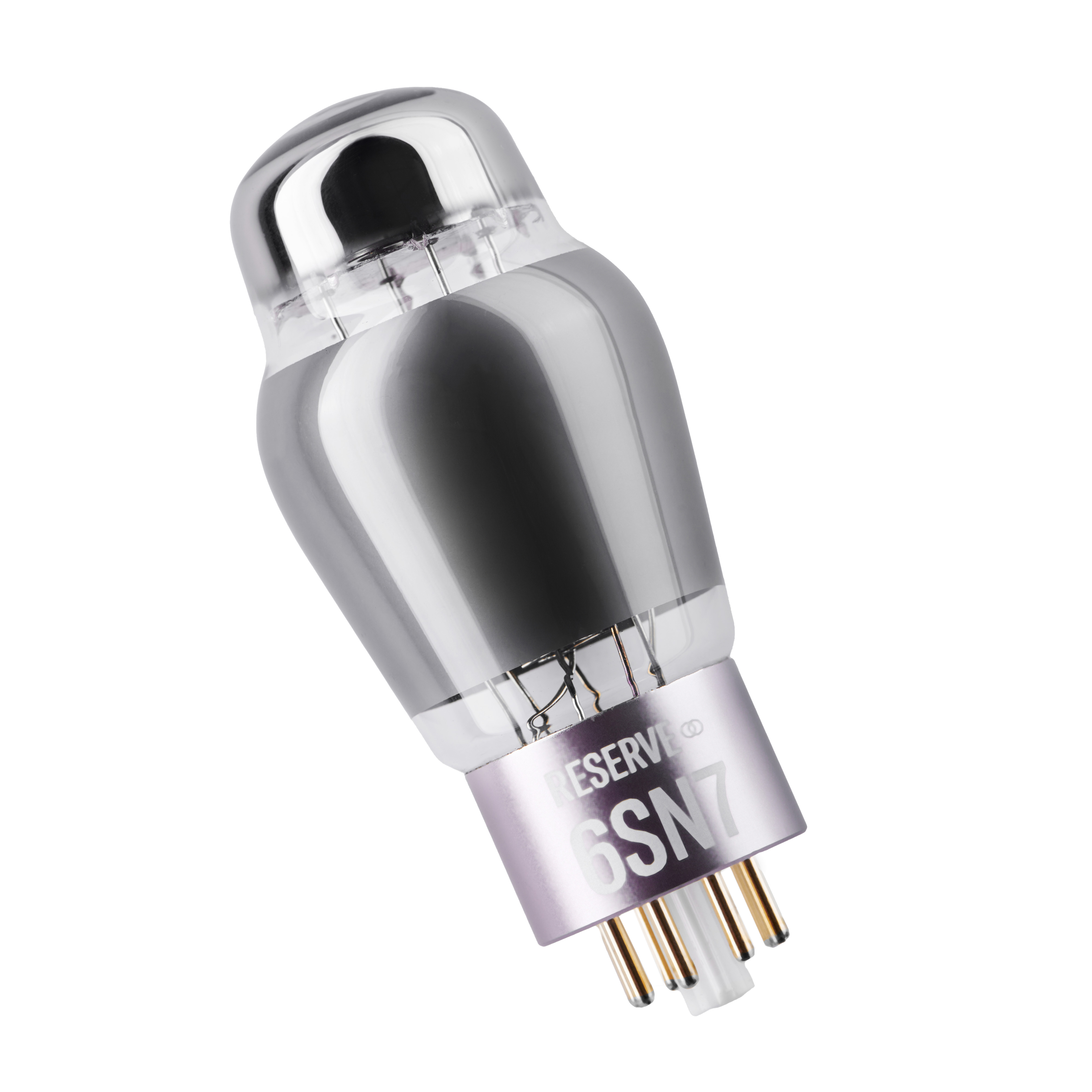

Ray Tubes 6SN7 RESERVE Series Dual Triode Vacuum Tube.
When Only the Best Will Do
The Ray Tubes RESERVE 6SN7 isn’t for everyone. It’s the distillation of decades of experience. With a bespoke design, small-batch production, and meticulous selection, the Ray Tubes RESERVE Collection reveals audio details you never knew were there.
Hand selected and tested, the Ray Tubes RESERVE 6SN7 is designed specifically for hi-fi audio applications. Featuring gold-plated pins and our monocrystalline carbon Magic Coating, the RESERVE Collection easily outperforms New Old Stock and new production alike. Fewer than 5% of production meets our standards.
The 6SN7 vacuum tube is a dual triode usually found in the driver stage of power amps. It’s been used in audio amps since its introduction in 1939. From 1949, it was used in the famous Williamson circuit. Outside of audio applications, it was a crucial component in ENIAC—the world’s first digital computer.
Sound Characteristics
The Ray Tubes RESERVE 6SN7 offers a warm, natural sound with smooth treble and an outstanding midrange, making it an excellent choice for listeners who enjoy a vintage, rich, and emotionally engaging tonal character.
- Bass Performance
Smooth and natural, leaning towards a more organic and fluid bass extension while still providing sufficient weight and density. - Midrange Performance
Rich, natural, and emotionally engaging. Vocals sound warm and expressive, allowing the singer's emotions to come through effortlessly. - Treble Performance
High frequencies are smooth and refined, emphasizing a natural treble extension. - Dynamics and Soundstage
Well-balanced and natural dynamic presentation, with an expansive soundstage offering excellent depth and stereo separation.
Technical Specifications
- Tube Type: 6SN7
- Tube Socket: 8-pin
- Max Anode Dissipation Power: 5 W
- Max Screen Dissipation Power: N/A
- Output Power in Class A1 Amp (Single Tube): N/A
- Output Power in Class AB1 Amp: N/A
- Max Anode Voltage: 450 V
- Max Screen Voltage: N/A
- Max Grid Voltage: ~8 V
- Heater Voltage: 6.3 V
- Heater Current: 0.6 A
- Transconductance: 2.6 mA/V
- Amplification Factor: 20
- Internal Resistance: 7.7 kΩ
Package Contents
- Single vacuum tube
- User handbook featuring burn-in guidelines
- Certificate of authenticity and warranty
The Ray Tubes One Year Warranty
Most vacuum tubes are notoriously fickle. That’s why warranties are rare. But we trust our products and we’re proud to offer our One Year Warranty against manufacturing defects. For more details, check out our warranty page.
