DTA-100LF
3 left in stock
Dayton Audio DTA-100LF Desktop Low-Frequency Amplifier with EQ
CA$179.83Each
- DTA-100LF
- DAYTON AUDIO
- Electronics
| Product Specifications | |
|---|---|
| Manufacturer | DAYTON AUDIO |

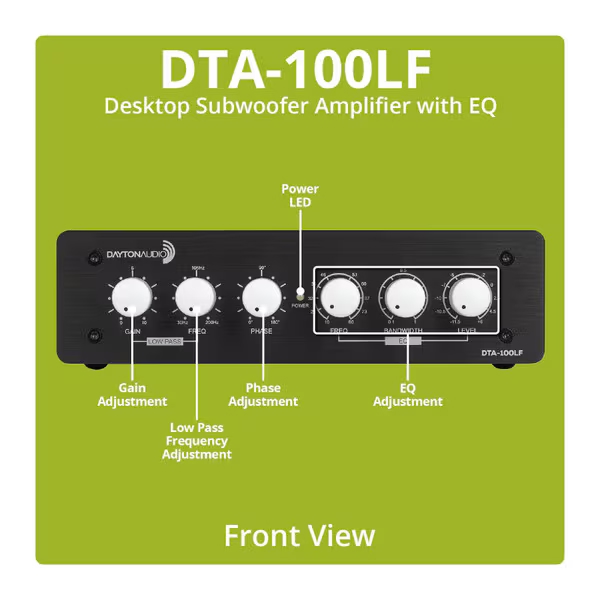

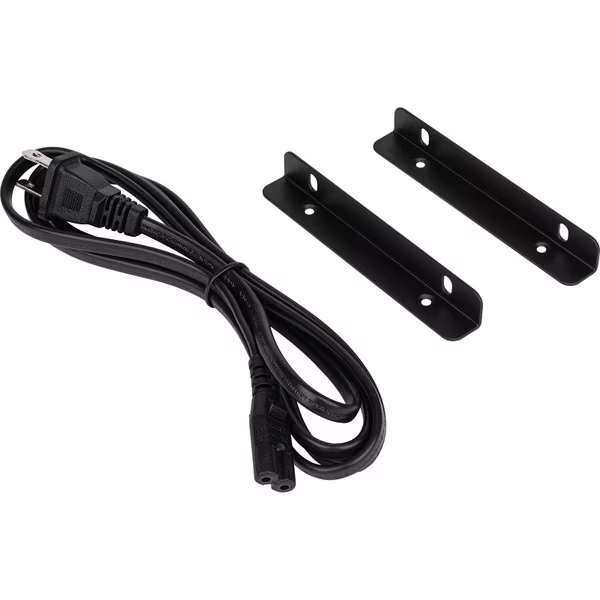

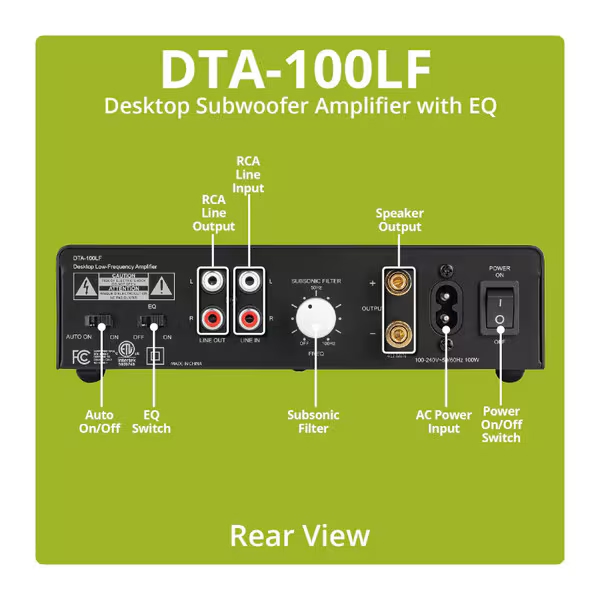

| Summary | Dayton Audio DTA-100LF Desktop Low-Frequency Amplifier with EQ The DTA100-LF is a stylish desktop amplifier designed by Dayton Audio specifically for low-frequency application. This low profile amplifier features an ultra-stable DC power supply and optimally designed Class-D circuit topology to give you 100 watts at 4 ohms. Use the three built-in filters to optimize the output and power your drivers to their full capability. After dialing in your tone, the DTA-100LF even manages its own power state with the auto-on feature to function as a true set-and-forget unit! Key Features Low-profile design looks good and sounds better 70 Watt output at 8 ohms and 100 Watt output at 4 ohms Adjustable phase, subsonic filter, low-pass filter, and single band EQ RCA line Inputs and outputs Auto-on functionality for true set-and-forget operation Mounting brackets for mounting under desks and tables With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise Specifications Maximum Output Power: 70 Watts @ 8ohm, 100 Watts @ 4 ohm THD: <1% Frequency Response: 20 Hz - 180 Hz +/- 3dB SNR: 95dB Input Sensitivity: 200mV Line Input Connectors: RCA Line Output Connectors: RCA Low Pass Crossover Range: 30 Hz - 200 Hz Phase Adjustment: 0° - 180° Variable Line Input Impedance: 22 kOhm Line Output Impedance: 4 kOhm Power Input Voltage Range: 120 - 240 VAC Standby Power: 1.8 Watts Max Power Consumption: 150 Watts Dimensions (W x H x D): 7.5″ W x 2″ H x 5.5″ D Weight: 3.3 lbs. |
| FILENAME | ACTION |
|---|---|
| dta100lf.pdf | Download |
