AS-1

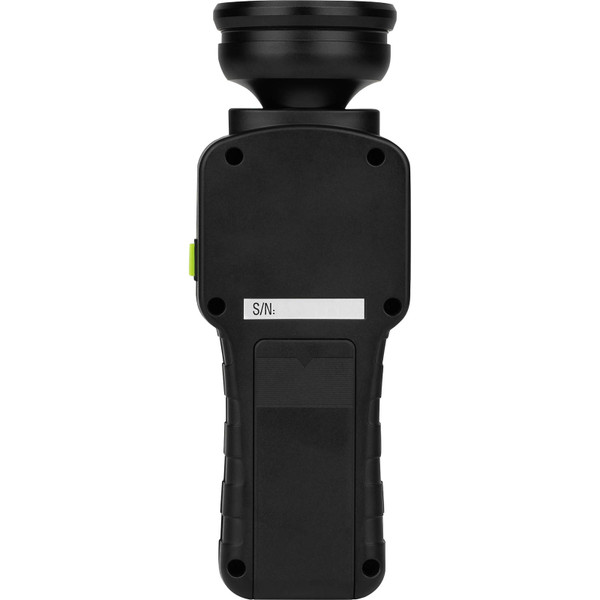

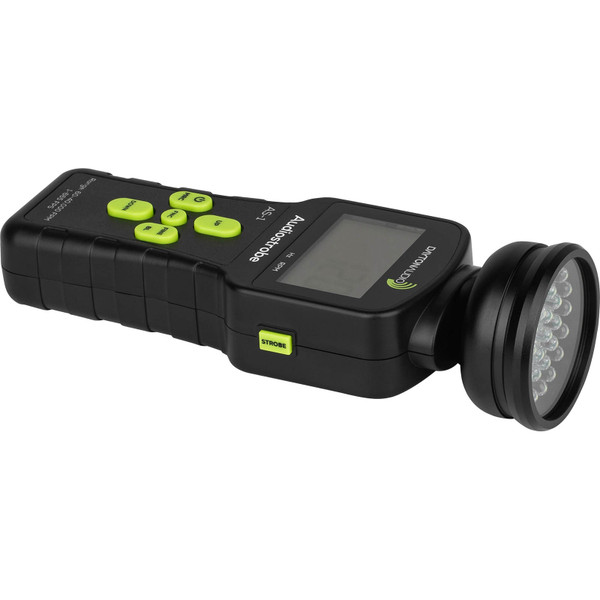

Dayton Audio AS-1 Audiostrobe Woofer Analyzer
The Dayton Audio AS-1 Audiostrobe was specifically designed with the loudspeaker enthusiast and professionals in mind. The typical frequency response of a loudspeakers contains peaks, nulls and/or resonances which are undesirable. The causes of such irregularities are difficult to see however by synchronizing the flashes per second at or near the frequency of the inputted sine wave to the loudspeaker, the loudspeaker seems motionless or in slow motion. This allows the loudspeaker behavior to be observed even in well-lit rooms thanks to 36 super bright LEDs with total output of 1000 lumens.
Key Features
A " Must Have" tool for the speaker enthusiast or professional
Glow-in-the-Dark Buttons for use in dark environments
Large LCD with backlight for easy viewing
Super bright LED strobe (1000 lumens) is visible even in well-lit rooms
Single-step or continuous frequency tuning adjustment
Ergonomic ABS Plastic shell is solid and comfortable to operate
Memory storage for up to 10 sets of flash frequencies
By utilizing the phenomenon of persistence of vision, the Dayton Audio AS-1 can often help identify the cause of response defects and other useful information about individual drivers as well as complete loudspeaker systems by slowing down a driver's movement to see its performance in motion.
Dayton Audio’s AS-1 provides intermittent illumination of an object for visual analysis, up to a frequency of 665Hz. By adjusting the frequency of illumination, objects in vibrational or rotational movement can appear stationary or in slow motion. This optical illusion called visual persistence allows for a non-contact inspection and status of moving object surfaces well beyond the ability of the naked eye.
The Dayton Audio AS-1 can help identify the cause of response defects and other useful information of individual drivers. These include, but are not limited to:
Non-linearity i.e. rocking motions of the cone
Cone, Surround and dust cap deformations
Resonance modes in spider and tinsel leads
Lead deformation
Spider deformation
Phase relationships in multi-speaker systems
Tuning frequency and behavior of passive radiators
Excursion limits of active and passive drivers
Slow Motion
The Dayton Audio AS-1 Audiostrobe was specifically designed with the loudspeaker enthusiast and professionals in mind. The typical frequency response of a loudspeaker contains peaks, nulls, and/or resonances that are undesirable. The causes of such irregularities are difficult to see however by synchronizing the flashes per second at or near the frequency of the inputted sine wave to the loudspeaker, the moving components appear motionless or in slow motion.
