SW280WA03
2 left in stock

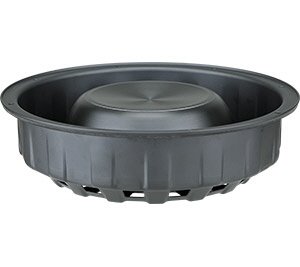

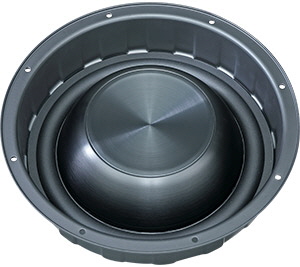

Wavecor SW280WA03, 280mm (11in) Aluminum Cone Shallow Subwoofer, with 39mm Voice Coil, 4ohm.
CA$284.09Each
- SW280WA03
- WAVECOR
Wavecor SW280WA03, 280mm (11in) Aluminum Cone Shallow Subwoofer, with 39mm Voice Coil, 4ohm.
The SW280WA03 is a woofer designed for dedicated sub bass applications. It works equally well for high-
end hi-fi, high quality home theater systems, and top multimedia setups.
Innovative, very shallow design, with motor structure mounted “inside” the cone.
Recommended for high end audio applications, where build-in depth is limited.
Typical applications are for high performance in-wall and theater systems
FEATURES:
- New innovative design with cone wrapped around the motor structure to reduce overall dept
- Rigid alu cone to ensure piston motion at high drive levels
- Venting through holes in spider ring reduced distortion and compression
- Vented chassis for lower air flow speed reducing audible distortion
- Internal alu ring for stabilizing the magnetic field leading, to lower high-SPL distortion
- Vented heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
- Large motor structure with 1.5” voice coil diameter and 135 mm magnet for better control and efficiency
- Black-anodized magnet structure steel parts for increased heat dissipation and power handling
- Long linear stroke motor for reduced distortion at high levels
- Linear suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
- 4-layer voice coil for increased control and better performance in small volumes
| FILENAME | ACTION |
|---|---|
| SW280WA03_04.pdf | Download |
