8SW-4HE
3 left in stock

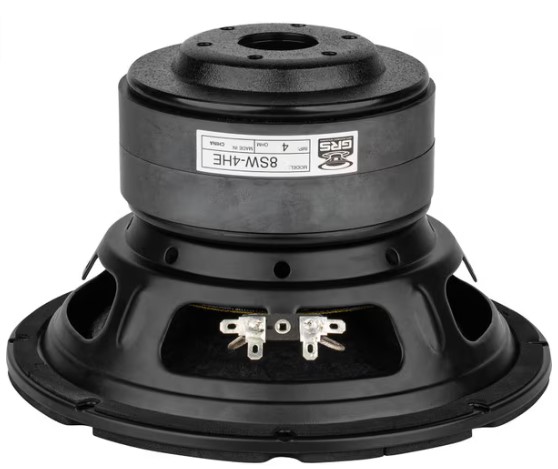

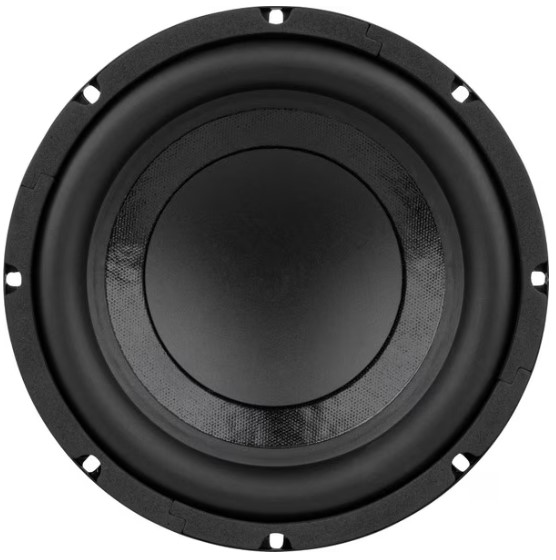

GRS 8SW-4HE, 209mm (8in) High Excursion Subwoofer 4 Ohm.
CA$81.47Each
- 8SW-4HE
- GRS
GRS 8SW-4HE, 209mm (8in) High Excursion Subwoofer 4 Ohm.
The versatile 8SW-4HE 8” high excursion subwoofer from GRS is designed to produce excellent low frequency extension in a variety of designs. Suitable for both sealed and vented enclosures, this driver the ideal replacement or upgrade for your existing subwoofers with worn out or blown drivers. Featuring extensive venting, rubber surround, high temperature voice coil, low Fs, and 10.5 mm of excursion the 8SW-4HE is built for remarkable bass response on a budget.
Key Features
- High excursion and low Fs to produce powerful low frequency output
- 2” voice coil on a thick aluminum former to handle up to 150 watts RMS
- Venting under the spider, through the pole piece, and in the magnetic gap for excellent heat dissipation
- Durable reinforced paper cone with rubber surround produces reliable and consistent performance
- Extended frame and bumped back plate allow ample clearance for high excursion
Key Specs:
- Nominal Diameter: 8"
- Power Handling (RMS): 150W
- Power Handling (MAX): 300W
- Impedance: 4 Ω
- Frequency Response: 30-700Hz
- Sensitivity: 85dB 2.83V/1m
- Voice Coil Diameter: 2"
- Maximum Linear Excursion: 10.8mm
| FILENAME | ACTION |
|---|---|
| 8sw-4he.pdf | Download |
