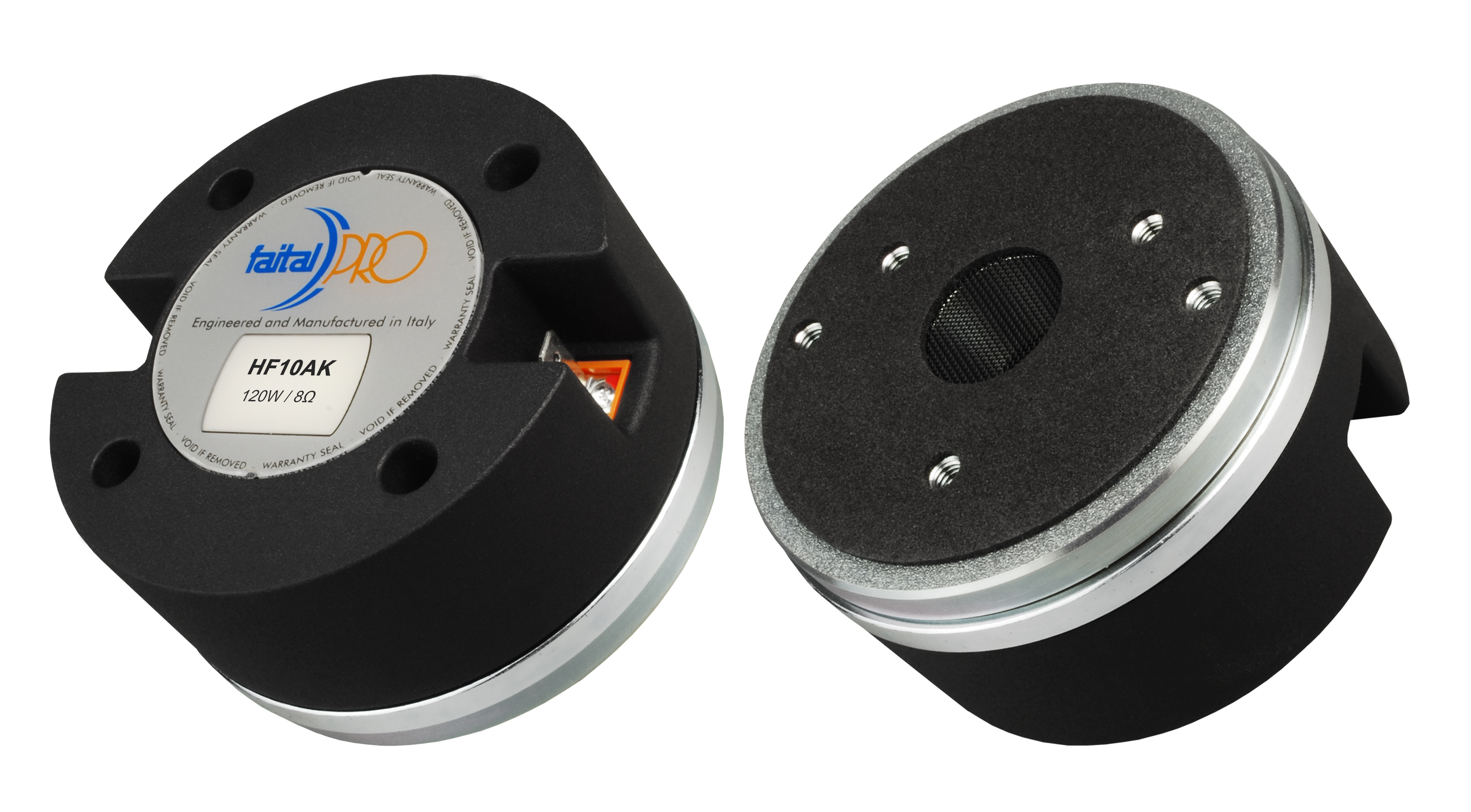

FaitalPRO HF10AK, 44mm (1.75in / 1-3/4in) COMPRESSION NEODYMIUM DRIVER 8 OHM, 1in THROAT, 2/3-BOLT.
FaitalPRO's HF10AK 1" horn compression driver features a ketone polymer dome diaphragm for smooth sound that extends from 1,000 Hz up to 20,000 Hz. Built with an annular phase plug.
A high energy, lightweight neodymium motor helps the HF10AK to produce output up to 112 dB (1W/1m), with an overall average sensitivity of 110 dB. The 8 ohm impedance makes FaitalPRO's HF10AK a great choice for line arrays, where multiples are use together. For higher power handling, a larger 44mm (1.73") voice coil is used. Made in Italy.
Key Features
- Ketone polymer dome diaphragm for smooth output from 1 kHz to 20 kHz
- 2/3-bolt mounting pattern with M6 threads
- Lightweight neodymium ring motor and 110 dB average sensitivity
- Large voice coil diameter for increased power handling
- Annular phase plug
- Made in Italy
Specifications:
• Power handling: 60 watts RMS with recommended crossover of 1,300 Hz, 12 dB/octave slope
• VCdia: 44mm (1.73")
• Impedance: 8 ohms
• Frequency response: 1,000-20,000 Hz
• SPL: 110 dB 1W/1m
• Dimensions: 102mm (4.02") diameter x 54mm (2.13") depth
• Bolt pattern: 2/3 x M6
• Weight: 1.4KG (3.09 lbs).
| FILENAME | ACTION |
|---|---|
| HF10AK.pdf | Download |
