8MC500ND

In stock

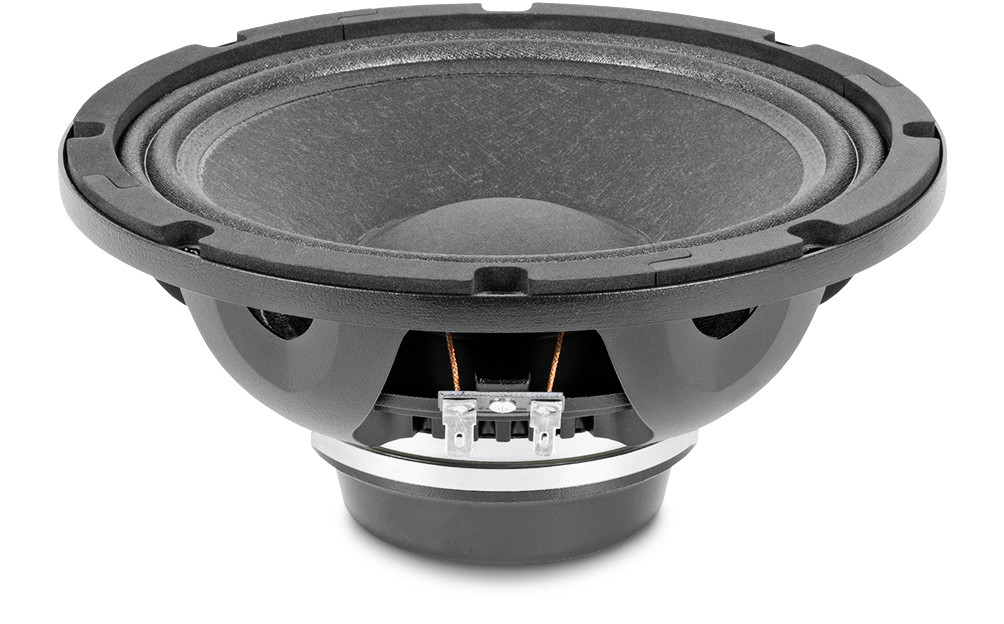

Beyma 8MC500ND, 212mm (8.38in / 8-3/8in) Paper Cone Pro Midbass, with 64mm Voice Coil, 98dB, 8ohm. !!! ITEM NOT ACTUALLY IN STOCK, ALLOW 1-2 WEEKS DELAY FOR DELIVERY !!!
CA$356.27Each

Beyma 8MC500ND, 212mm (8.38in / 8-3/8in) Paper Cone Pro Midbass, with 64mm Voice Coil, 98dB, 8ohm.



Technical specifications

Power capacity
500 W AES
Nominal diameter
200 mm 8 in
Nominal impedance
8 Ohm
Minimum impedance
7.1 ohm
Program power
1000 W
Sensitivity
98 dB 1 W @ 1 m @ ZN
Frequency range
80-6000 Hz
Recommended enclosure volume
12 l
Voice coil diameter
63.5 mm 2.5 in
BL factor
16.7 N/A
Moving mass
0.023kg
Winding length
14 mm
Air gap height
8 mm
Xdamage pp
42 mm

Parameters Thiele & Small

Fs
69 Hz
Re
5.3 ohm
Qms
2.6
Qes
0.19
Qts
0.18
Vas
15.9 l
Cms
231 µm / N
Rms
3.8 kg/s
Efficiency %
2.6
Sd
0.022 m²
Xmax
5 mm
Vd
110 cm³
Le @1 kHz
0.5 mH

Construction details

Depth
100 mm 3.9 in
Net weight
2.8 kg 6.2 lb
Total weight
3.1 kg 6.83 lb
Magnet
Neodymium
FILENAME ACTION
8MC500Nd.pdf Download
