TPL-150H

2 left in stock

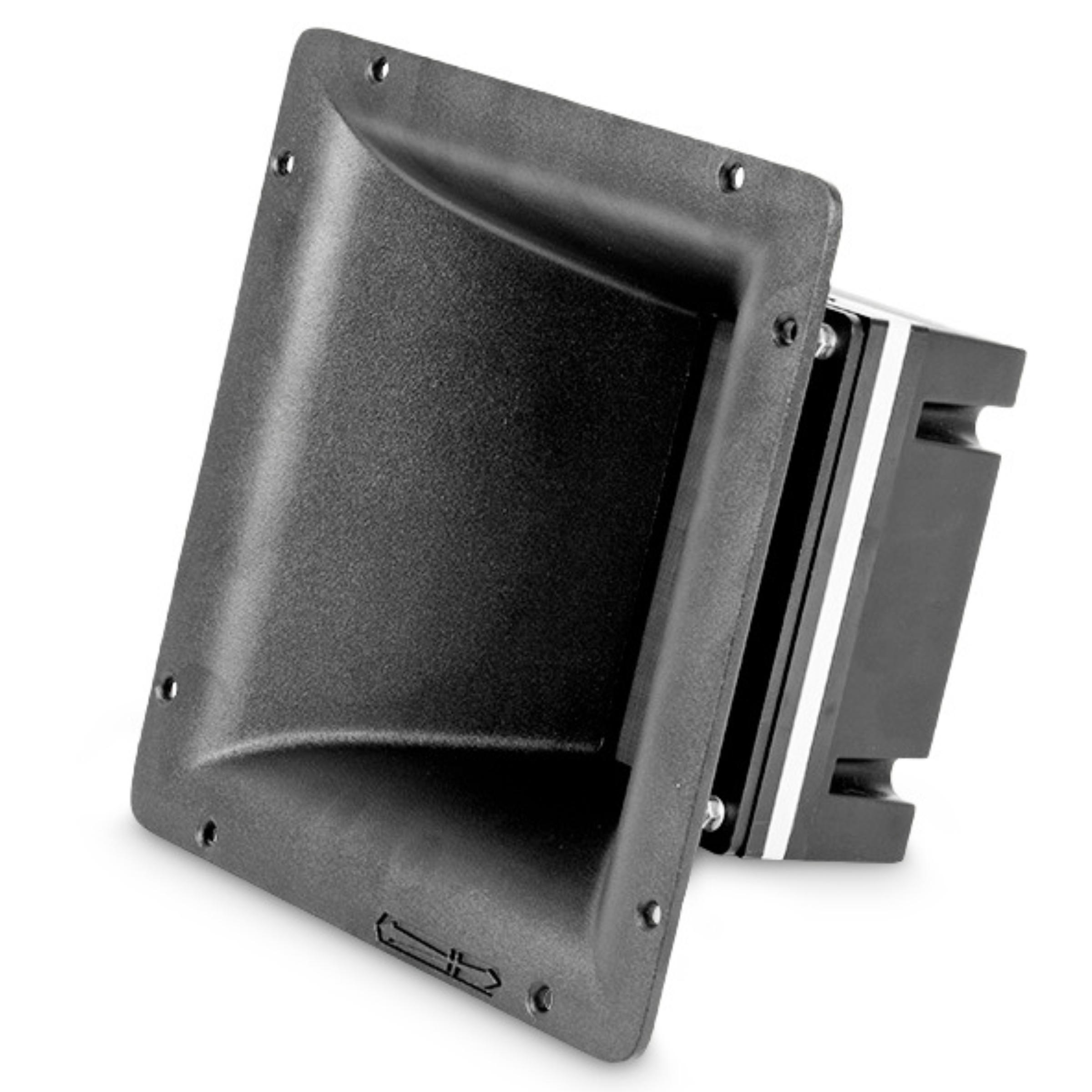

BEYMA TPL-150H, 160mm (6in) Air Motion Transformer Ribbon Tweeter, 102dB, 8 ohm, 230mm x 230mm Faceplate
CA$944.93Each

BEYMA TPL-150H, 160mm (6in) Air Motion Transformer Ribbon Tweeter, 102dB, 8 ohm, 230mm x 230mm Faceplate

Technical specifications

Nominal impedance
8 Ohm
Electrical resistance
4.9 ohm
Power capacity
80 W AES above 1 kHz
Program power
160 W above 1 kHz
Sensitivity
102 dB 1 W @ 1 m
Frequency range
700-23000 Hz
Recom. crossover frequency
1 kHz or higher (12 dB/oct. min slope)
Horizontal beamwidth
80º (+9º. -20º) // (-6 dB. 1.2 - 16 kHz)
Vertical beamwidth
30º (+27º. -21º) // (-6 dB. 1.2 - 16 kHz)
Directivity factor (Q)
27 (promedio / average 1.2 - 16 kHz)
Directivity index (DI)
13 dB (+6 dB. -4.5)
Diaphragm material
Kapton

Construction details

Overall dimensions
230x230x148 mm 9.05x9.05x5.8 in
Net weight
2.9kg 6.39lb
Total weight
3.25 kg 7.15 lb
Magnet
Neodymium
Baffle cutout dimensions
195x195 mm 7.68x7.68 in
FILENAME ACTION
TPL150H.pdf Download
