T-2030

2 left in stock

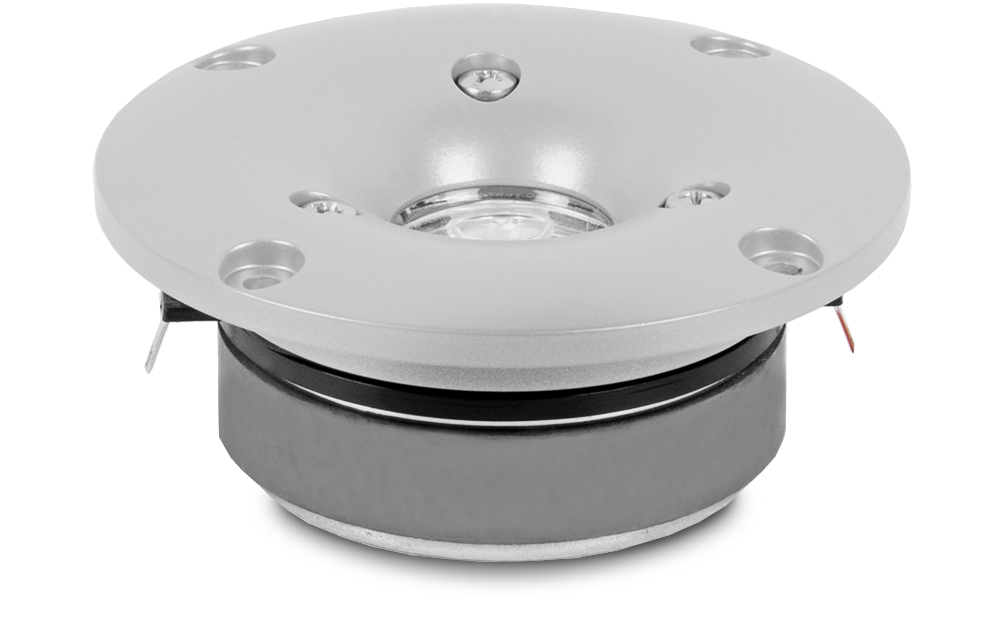

BEYMA T-2030, 25mm (1in) Aluminum Dome Tweeter, 95dB, 8 ohm, 102mm Faceplate
CA$93.19Each

BEYMA T-2030, 25mm (1in) Aluminum Dome Tweeter, 95dB, 8 ohm, 102mm Faceplate

Technical specifications

Nominal impedance
8 Ohm
Nominal diameter
32 mm 1.25 in
Sensitivity
95 dB 1 W @ 1 m
Minimum impedance
6.2 ohm @ 2.5 kHz
Frequency range
1500-20000 Hz
Re
5 ohm
Power capacity
15 W RMS
Program power
30 W
Recom. crossover frequency
2 kHz or higher (12dB/oct min slope)
Dispersion HxV
60º
Voice coil diameter
25.4 mm 1 in
Flux density
1.45 T
BL factor
3 N/A
Dome material
Aluminio / Aluminium

Construction details

External diameter
102 mm 3.9 in
Bolt circle diameter
90 mm 3.54 in
Baffle cutout diameter
75 mm 2.95 in
Depth
42 mm 1.65 in
Net weight
0.66 kg 1.45 lb
Total weight
0.7 kg 1.54 lb
Magnet
Ferrite
FILENAME ACTION
T2030.pdf Download
